Detecto Touchless Sonar Stadiometer - White

by Detecto
SKU SONARIS
Save $176.00 Save $176.00
Original price $585.00
Original price $585.00 - Original price $585.00
Original price $585.00
Current price $409.00
$409.00 - $409.00
Current price $409.00

This product does not qualify for free shipping. Shipping will be calculated at checkout.

Detecto Touchless Sonar Stadiometer - White

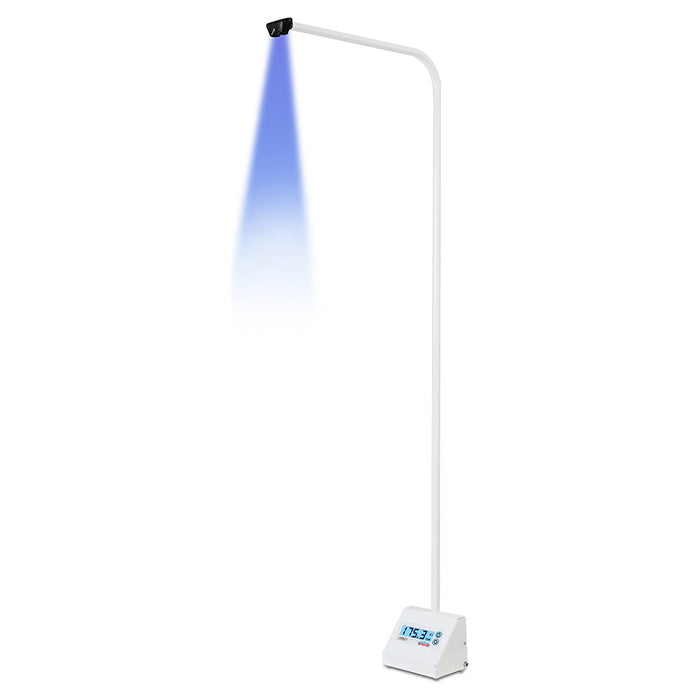

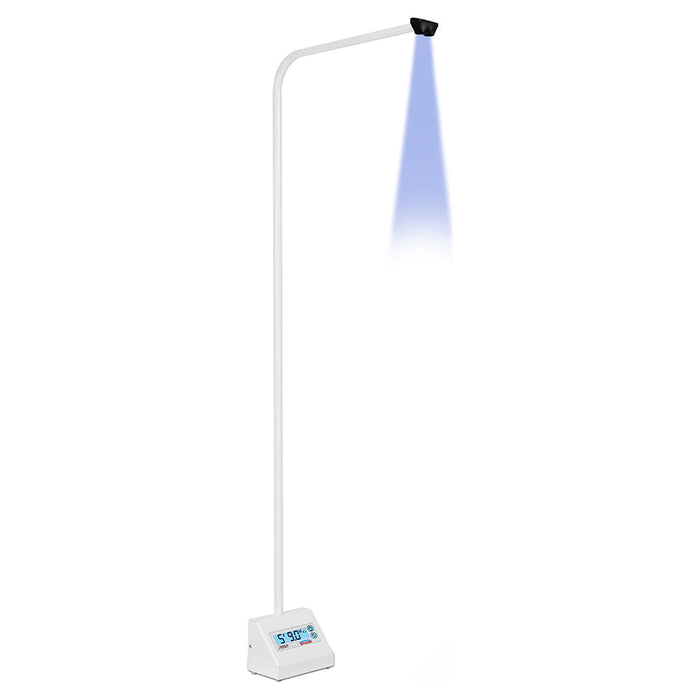

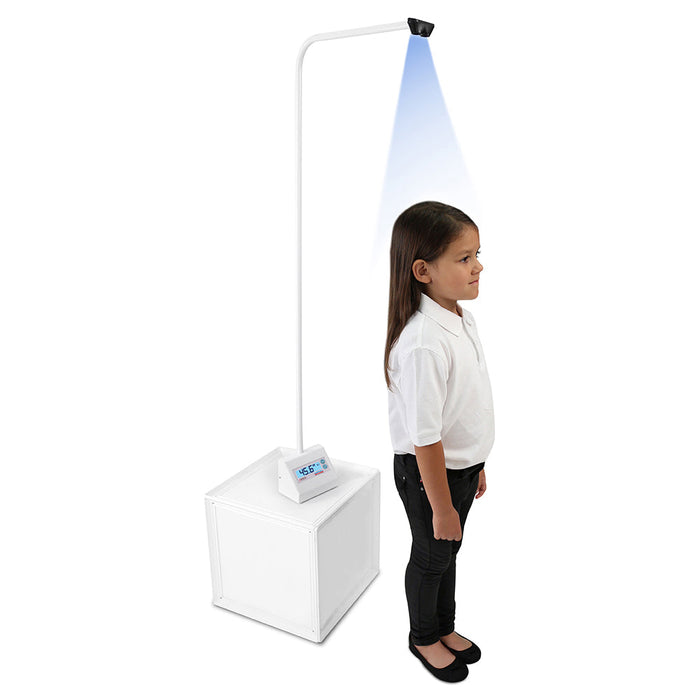

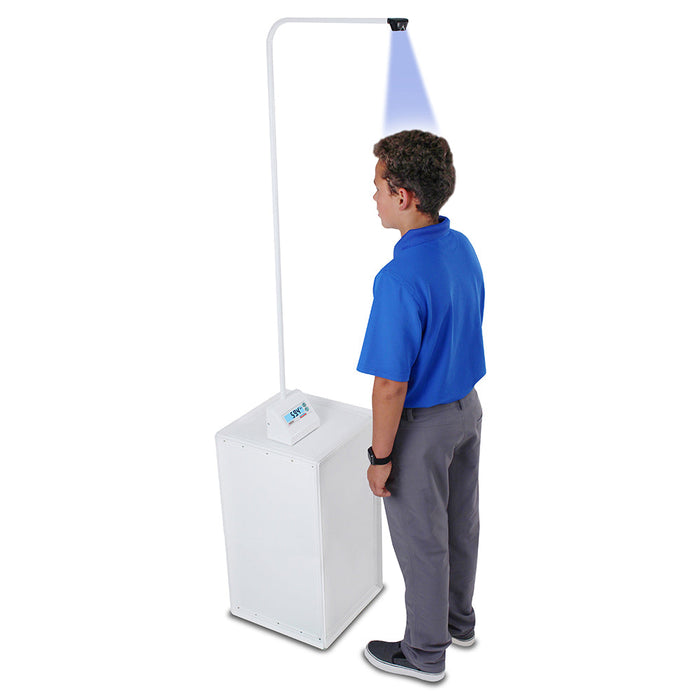

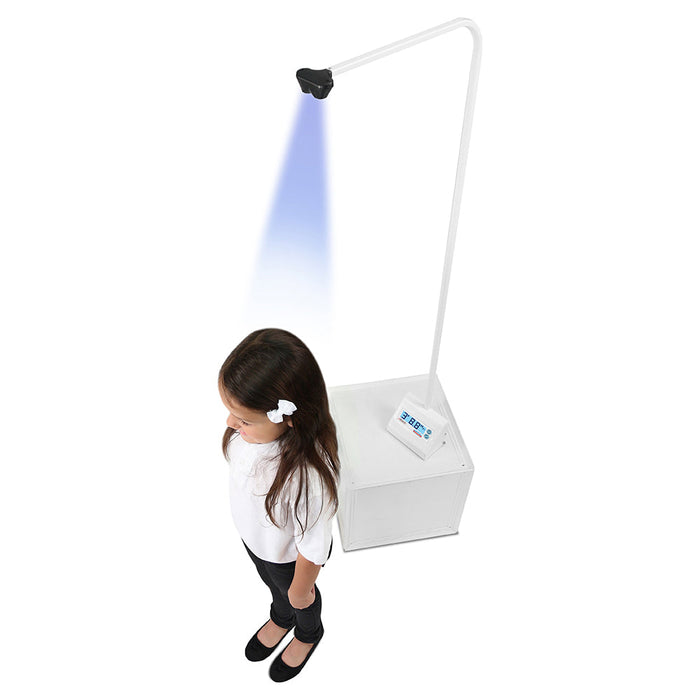

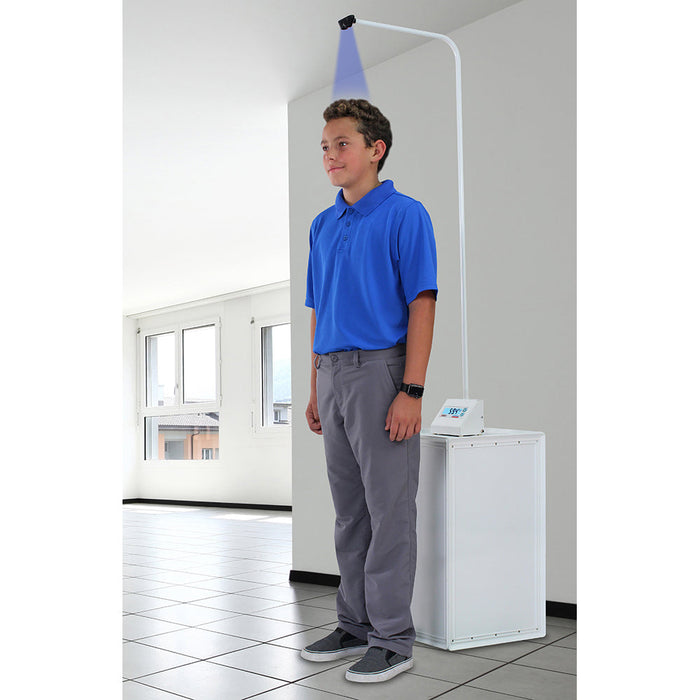

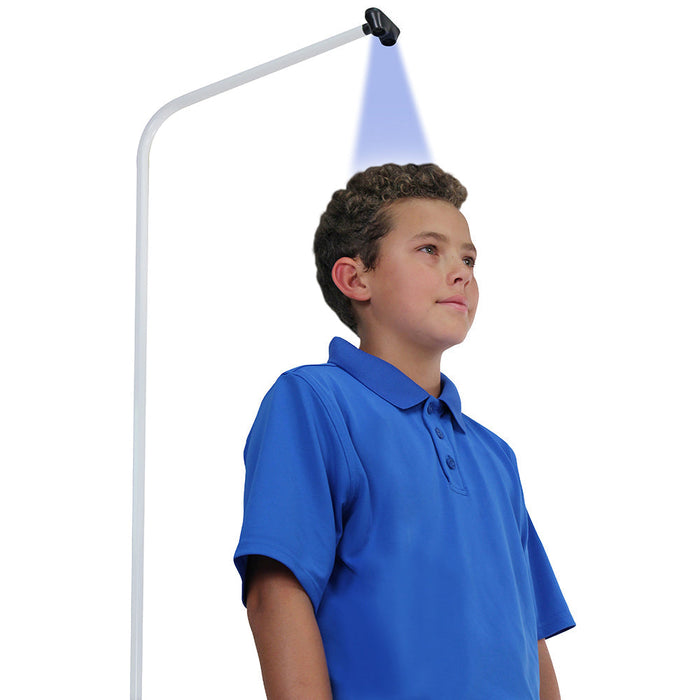

DETECTO's SONARIS stadiometer provides touchless height measurement via its state-of-the-art sonar technology that triangulates the top of the patient's head instantly. It can be used stand-alone on a desktop/tabletop for mobility, or wall mounted for permanent use. SONARIS offers an extraordinary measurement range from 0 - 9 ft high. Whether the patient is a tiny child or a giant adult, SONARIS will measure their height, covering a greater height range than any conventional height measuring instruments. SONARIS is simple to use, with only two buttons, POWER and UNITS. Ideal for school health, SONARIS displays four units of measurement: ft/in, in, cm, and mm with pinpoint accuracy to 0.2" and 5 mm.

Recommended Mounting Height:

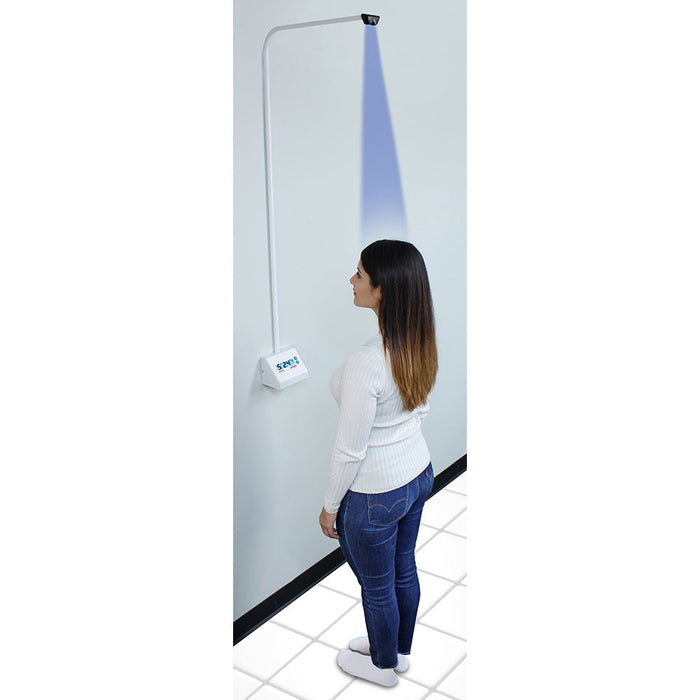

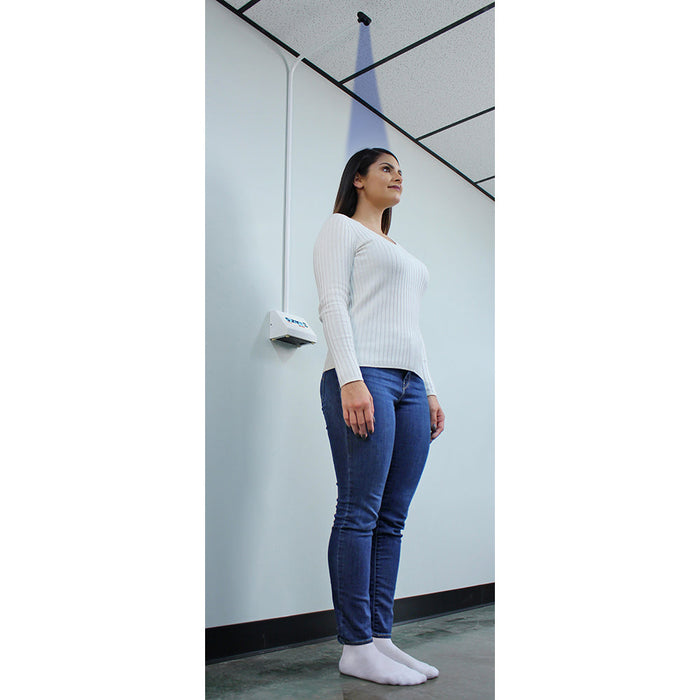

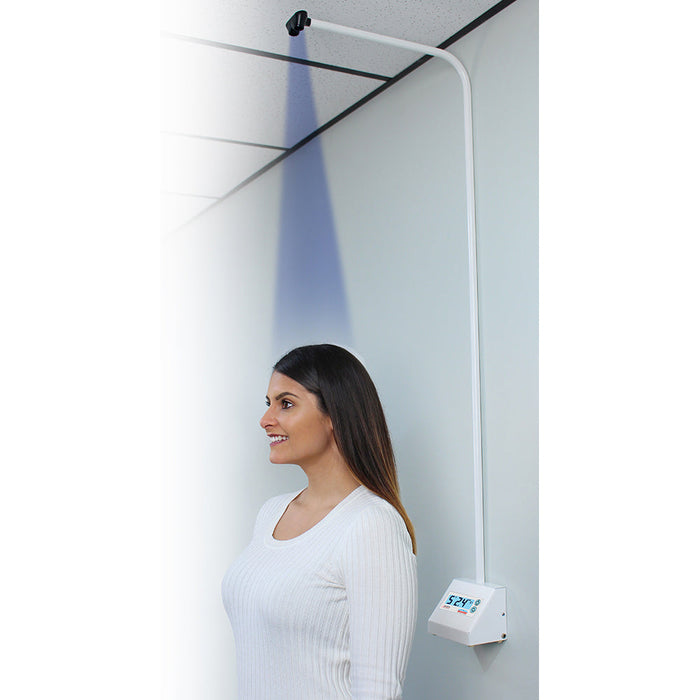

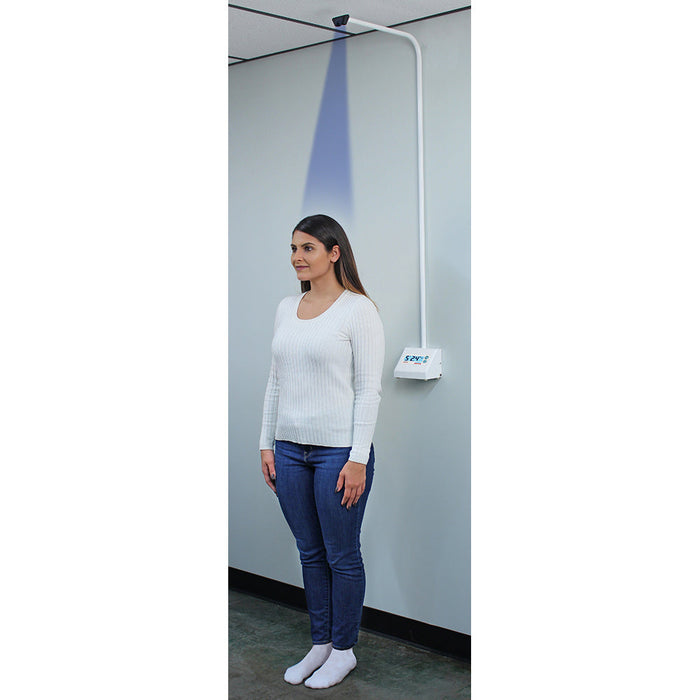

The recommended mounting height should be 88 inches/223 centimeters from the floor to the bottom of the sonar sensor or 41 inches/104 centimeters from the floor to the bottom of the indicator housing. The unit can be mounted higher, if needed.

Features

  • Auto calibrates to current position
  • Easily-Visible LCD display with blue backlight
  • Instant digital height readouts without pushing a button
  • Measures small children to tall adults
  • No assembly required
  • Portable or permanent set-up
  • AC adapter (not included) or 6 AA batteries (not included)

Specifications

  • Brand: Detecto
  • Product Type: Sonar Stadiometer
  • Hygienic: No Buttons to Touch Necessary
  • Height Rod Type: Sonar Technology with Triangulation Programming (truly touchless digital accuracy)
  • Measurement Range: 0 to 9 ft
  • Height Units: feet/Inches, Inches, Centimeters, and Millimeters
  • Accuracy: ft/in and in: 0.2" Graduations; cm

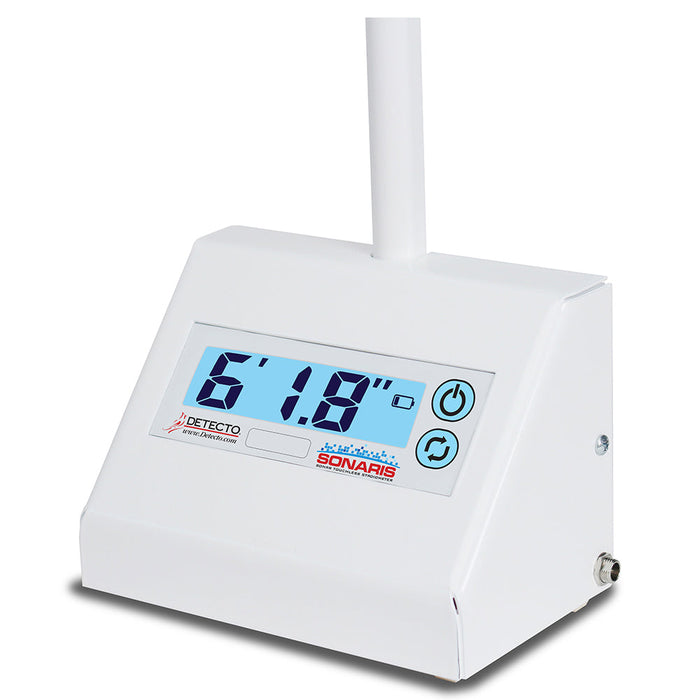

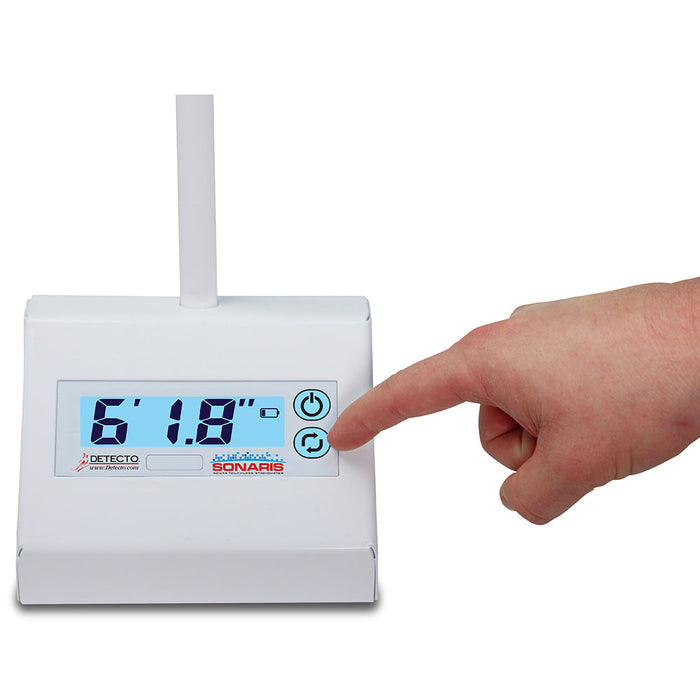

  • Display Type: 0.75" High, Seven Segment LCD with Blue Backlight
  • Button Functions: POWER and UNITS
  • Button Type: Mechanical Switch Type
  • Power Requirements: 6 "AA" cell Alkaline, Ni-Cad, or NiMH Batteries (not included)
  • Domestic models: 100 to 240V AC 50/60Hz 12V DC 1A Wall Plug-in UL/CSA Listed
  • AC power adapter: DETECTO part number 6800-1045 (not included)
  • International models: 100 to 240V AC 12V DC 1A Multi-Pin Input
  • AC power adapter: DETECTO part number 6800-1047 (not included)
  • Overall Dimensions: 5.9" (W) x 3.5" (D) x 47.4" (H)
  • Product Net Weight: 3 lb

Product Documents

Data Sheet
