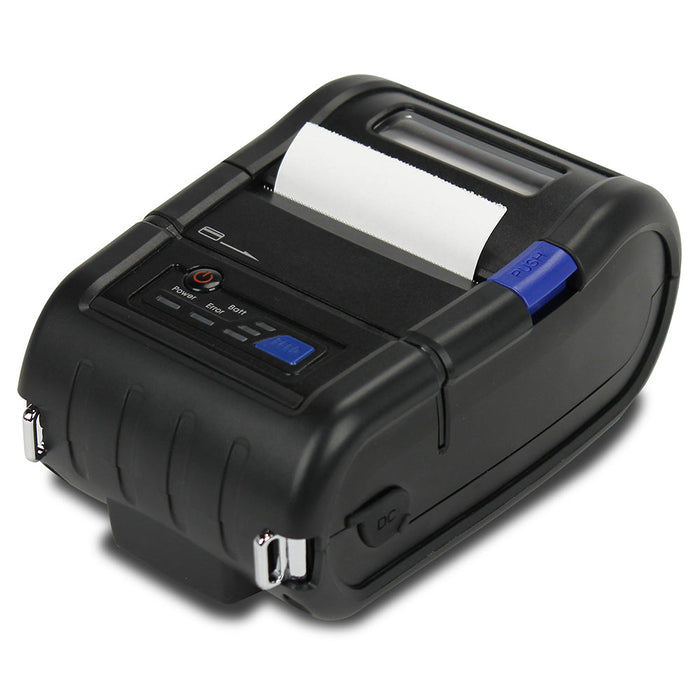

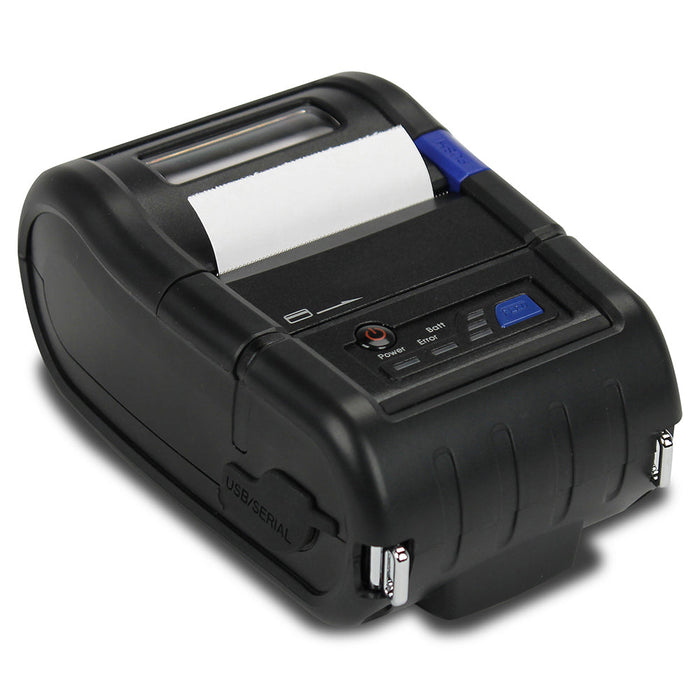

Detecto Portable Thermal Printer with RS232 Interface

Cardinal's P150 mobile high-speed direct line thermal printer is rechargeable lithium-ion battery (included) powered for use with portable scales. The P150 is compact and robust with a long-life printing head and high reliability. Serial and USB connectivity. There are three LEDs to indicate battery status. Charging time is 2 hours for 90 minutes of continuous use.

Features

• Lightweight and mobile
• Long-life lithium-ion battery
• Paper drop-in style handling
• Printing at 80 mm/sec
• RS232 Serial and USB
• Standard serial printer cable provided

Specification

• Brand: Detecto
• Product Type: Thermal Printer
• Printing Method: Direct Line Thermal Printing
• Printing Speed: Max. 3.15" Per Second
• Resolution: 203 DPI x 203 DPI
• Print Width: 1.89" , 384 Dot
• Character: ALPHA NUMERIC Character, Extension Character
• Font: Font A (12 x 24 Dot), Font B (9 x 17 dot)
• Number of Columns: 32 (Font A) 42 (Font B)
• Barcode: EAN-8, EAN-13, CODE 39, ITF, UPC-A, Codabar, Code93, Code128, PDF417(2D)
• Emulation: ESC/POS
• Driver: Window CE 4.2 & 5.0, Window Mobile 5.0
• Sensor: Paper End Sensor, Gap Sensor, Cover Open Sensor
• Paper Type: Thermal
• Paper Width: 3.5"
• Battery: Continuous Printing for 90 min. Standby for 24 hours
• Communications: Serial (RS232C), USB, Wireless Lan 802.11b/g (CMP-20WF)
• Battery Charger Input: AC100-240V, 50/60 Hz
• Battery Charger Output: 8.4V, 1200 mA
• Battery Type: Lithium Ion
• Battery Output Type: 7.4V, 1800mAh
• Battery Charging Time: 2 hours
• Overall Dimensions: 3.7" (W) x 5.3" (D) x 2.2" (H)
• Temperature (Operation): 41-104?F / 5-40?C
• Temperature (Storage): 14-122?F / -10-50?C
• Humidity (Operation): 35 - 95 %
• Humidity (Storage): 10 - 95 %

Product Documents

Data Sheet
