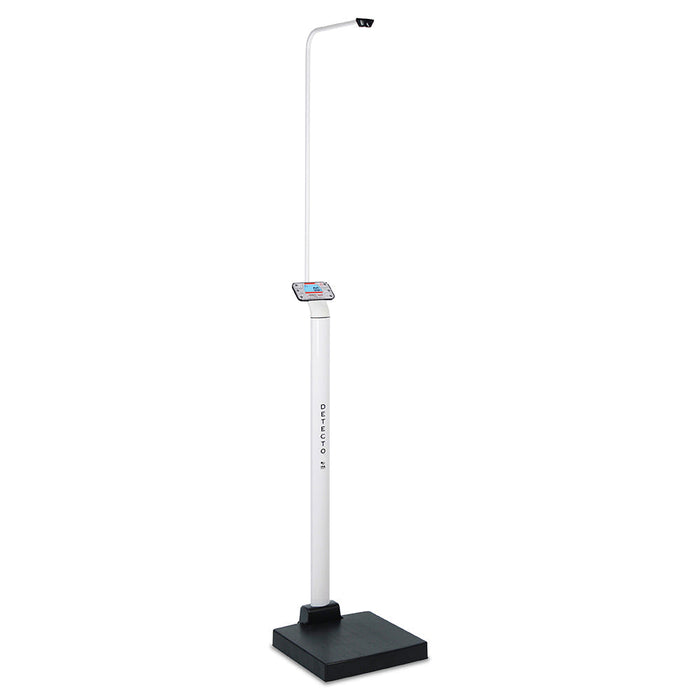

Detecto Physician Scale With Sonar Height Rod

DETECTO's APEX-SH series eye-level digital physician scales feature touchless sonar height rods and an extra-wide. The apex scale automatically captures patient weight and height readings and displays both onscreen without pushing a single button. AC or battery power (AC adapter included on some models), HL7 IEEE 11073 compliance, and Wi-Fi/Bluetooth and Welch Allyn connectivity available.

Features

• 0.75-Inch-High LCD weight readouts
• Units locking into pounds or kilograms
• WI-FI / Bluetooth models available for wireless EMR/EHR
• Mother / Baby function factors the weight of infants and toddlers held by an adult
• 10 different apex models available
• 1 RS232 serial port and 1 micro USB-B port
• 6 easy-to-use buttons
• BMI calculation

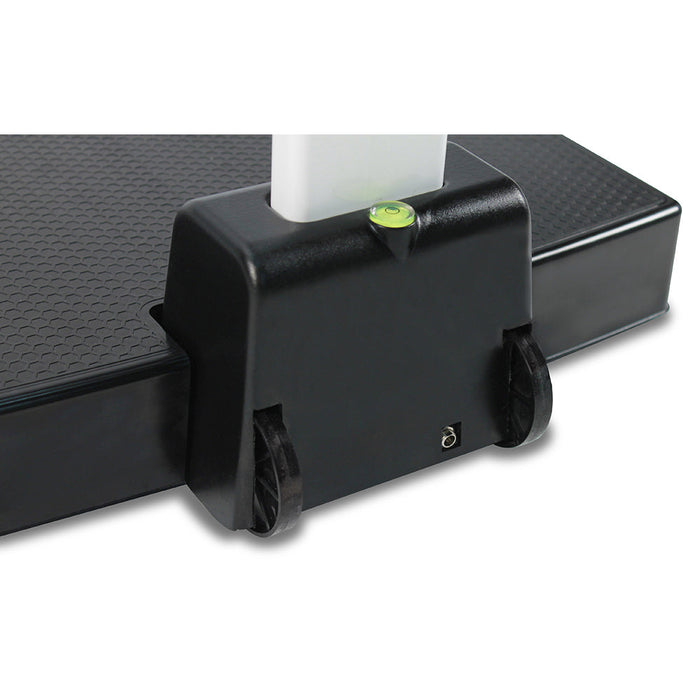

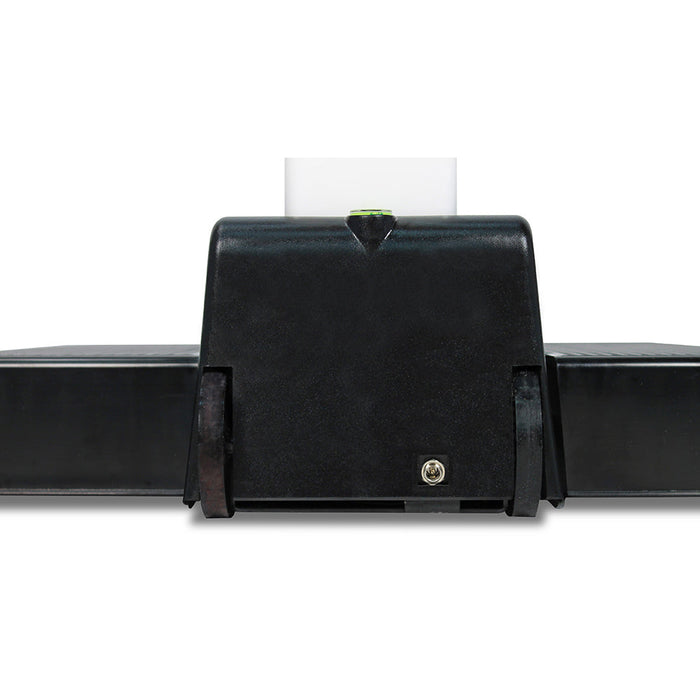

• Dual integral wheels

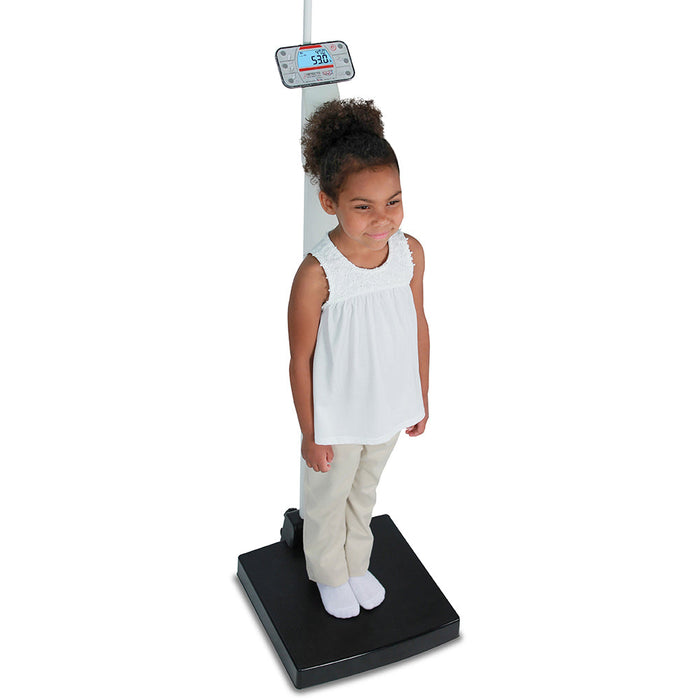

• Measure weight and height without pushing a single button

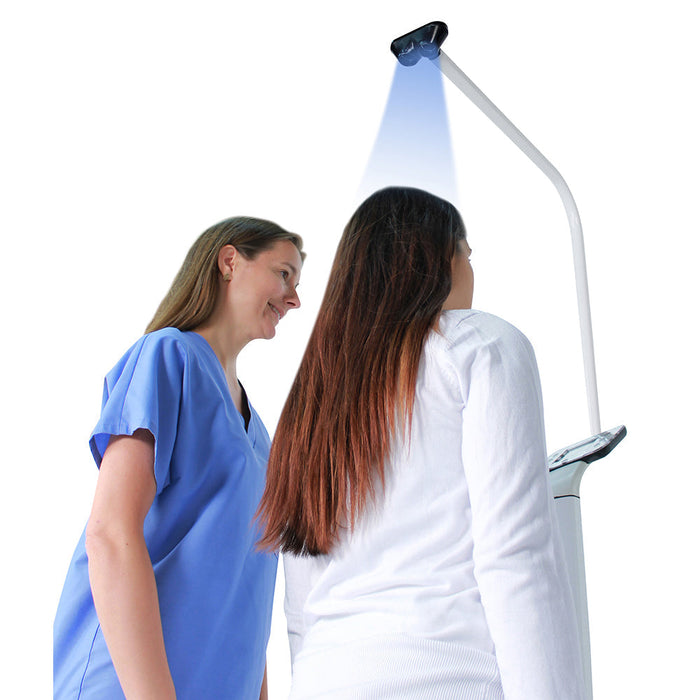

• Touchless sonar height rods
• Welch allyn connectivity available for electronic medical records

Specification

• Brand: Detecto
• Product Type: Digital Clinical Scale
• Width: 17"
• Depth: 19.5"
• Height: 89.5"
• Capacity: 600 lb x 0.2 lb / 300 kg x 0.1 kg (lb or kg selected upon initialization at start-up)
• Platform Size: 17" W x 17" D x 2.75" H
• Weighing/Height Units: Pounds/Inch (lb, in) or Kilograms/Centimeters (kg, cm)

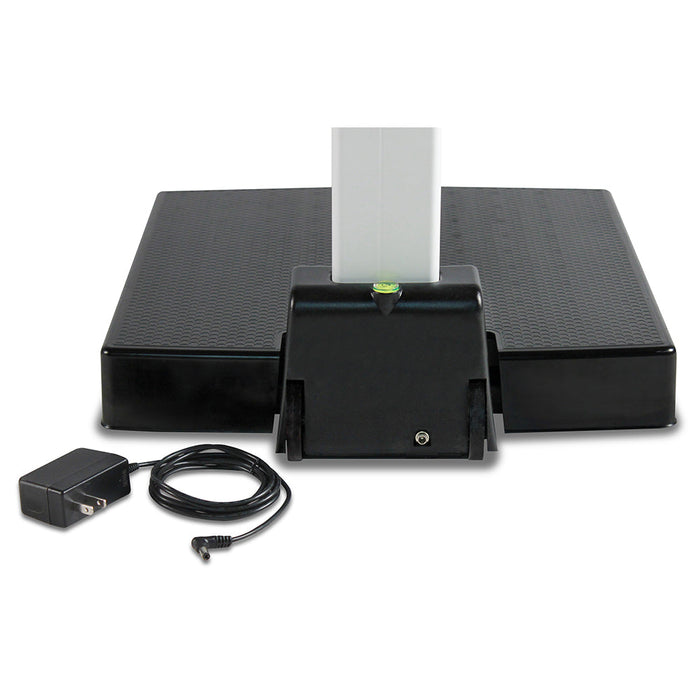

• Power: 12 AA Batteries (not included) or AC Adapter (included with some models)

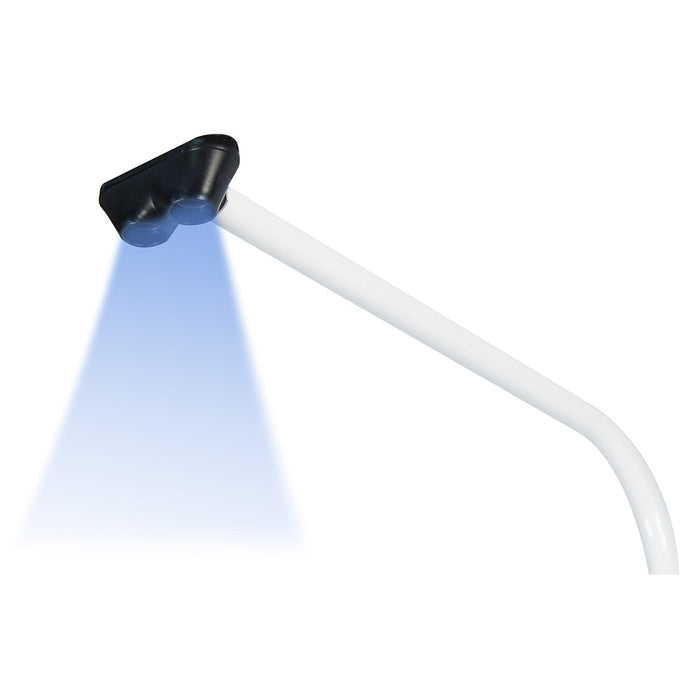

• Height Rod: Sonar Touchless Height Rod
• Height Rod Measures: 24" (2') - 86" (7'2") x 0.2"

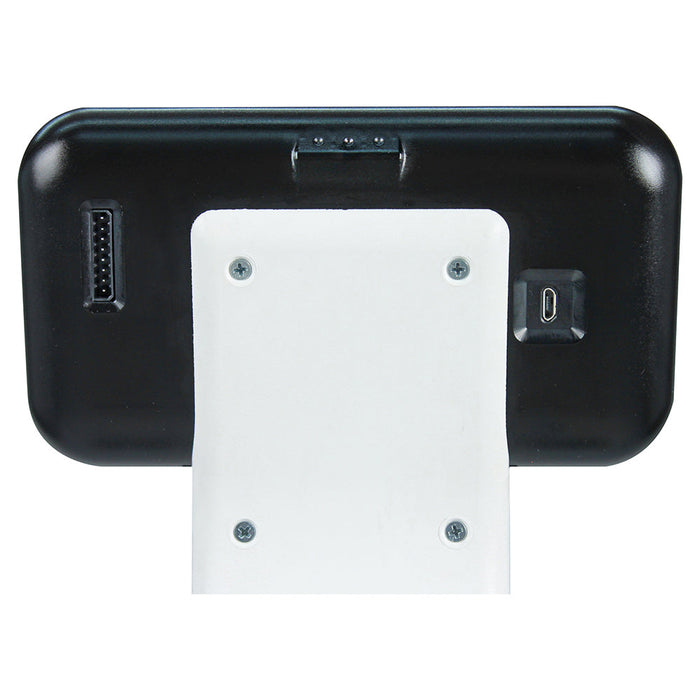

• Ports: 1 RS232 Serial Port and 1 micro USB-B Port
• Device Connectivity: HL7 IEEE 11073 Compliant (standard)
• Net Weight: 32 lb / 14 kg

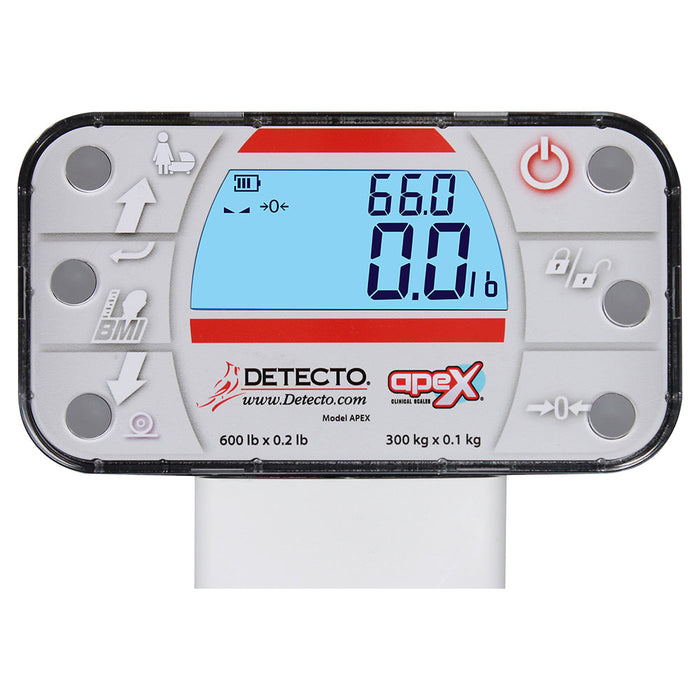

• Keypad: 6 Buttons (Power, Lock/Release, Zero, BMI, Up Arrow, Down Arrow)
• Display Type: Dual-Row, Seven-Segment, Clinical-Blue LCD
• Number of Characters: Weight: 5 Digit, 0.75" (19 mm) High / Height/BMI: 4 Digit, 0.4" (10 mm) High
• Operating Environment: Operated Temperature Range: 14 to 104 ºF (-10 to +40 ºC) / Humidity: 0 to 90% Non-Condensing
• Digital Filtering: StableSENSE Adjustable Filtering
• Construction: Column - Aluminum White Powder Coated; Base - Steel; Indicator Enclosure - ABS
