Detecto Physician Scale Sonar Height Rod with Welch Allyn CVSM/CSM Connectivity

by Detecto
SKU APEX-SH-UWA-AC
Save $655.00 Save $655.00
Original price $2,183.00
Original price $2,183.00 - Original price $2,183.00
Original price $2,183.00
Current price $1,528.00
$1,528.00 - $1,528.00
Current price $1,528.00

This product does not qualify for free shipping. Shipping will be calculated at checkout.

Detecto Physician Scale Sonar Height Rod with Welch Allyn CVSM/CSM Connectivity

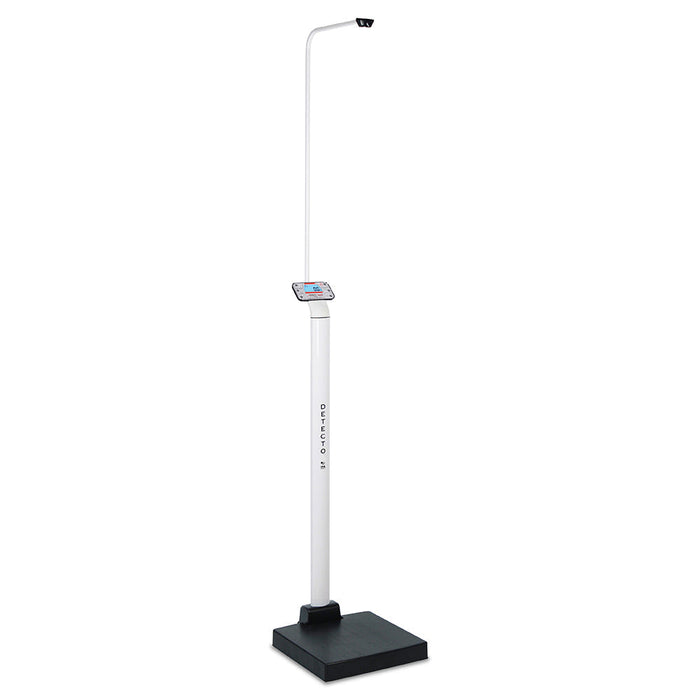

DETECTO's APEX-SH series eye-level digital physician scales feature touchless sonar height rods and an extra-wide. The apex scale automatically captures patient weight and height readings and displays both onscreen without pushing a single button. AC or battery power (AC adapter included on some models), HL7 IEEE 11073 compliance, and Wi-Fi/Bluetooth and Welch Allyn connectivity available.

Features

  • 0.75-Inch-High LCD weight readouts
  • Units locking into pounds or kilograms
  • WI-FI / Bluetooth models available for wireless EMR/EHR
  • Mother / Baby function factors the weight of infants and toddlers held by an adult
  • 10 different apex models available
  • 1 RS232 serial port and 1 micro USB-B port
  • 6 easy-to-use buttons
  • BMI calculation

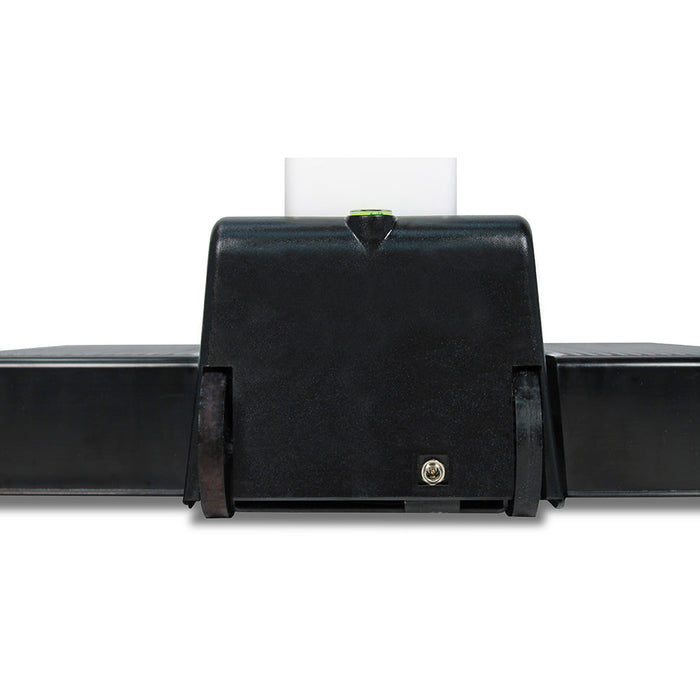

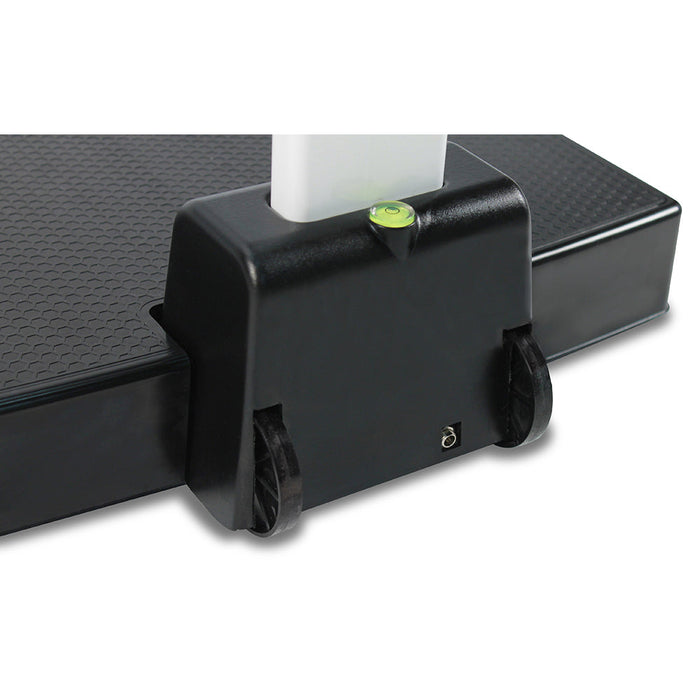

  • Dual integral wheels
  • Measure weight and height without pushing a single button
  • Touchless sonar height rods
  • Welch allyn connectivity available for electronic medical records

Specification

  • Brand: Detecto
  • Product Type: Digital Clinical Scale
  • Width: 17"
  • Depth: 19.5"
  • Height: 89.5"
  • Capacity: 600 lb x 0.2 lb / 300 kg x 0.1 kg (lb or kg selected upon initialization at start-up)
  • Platform Size: 17" W x 17" D x 2.75" H
  • Weighing/Height Units: Pounds/Inch (lb, in) or Kilograms/Centimeters (kg, cm)

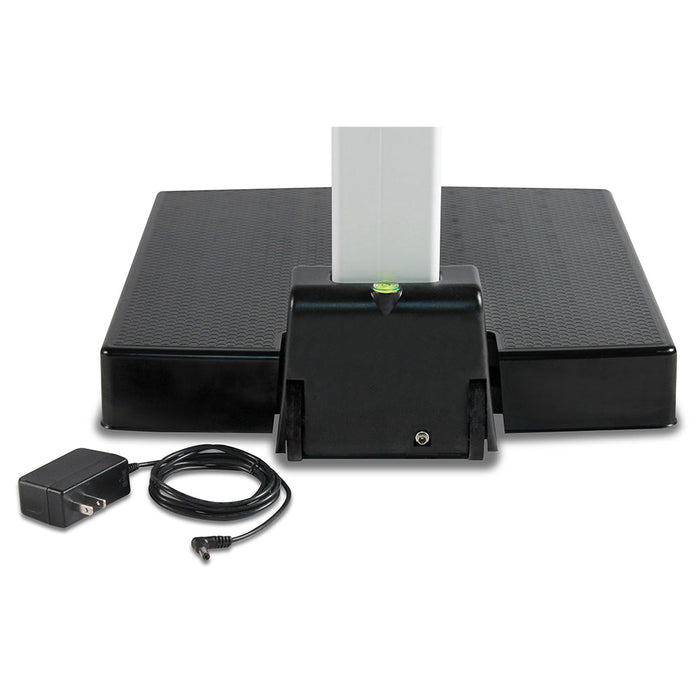

  • Power: 12 AA Batteries (not included) or AC Adapter (included with some models)

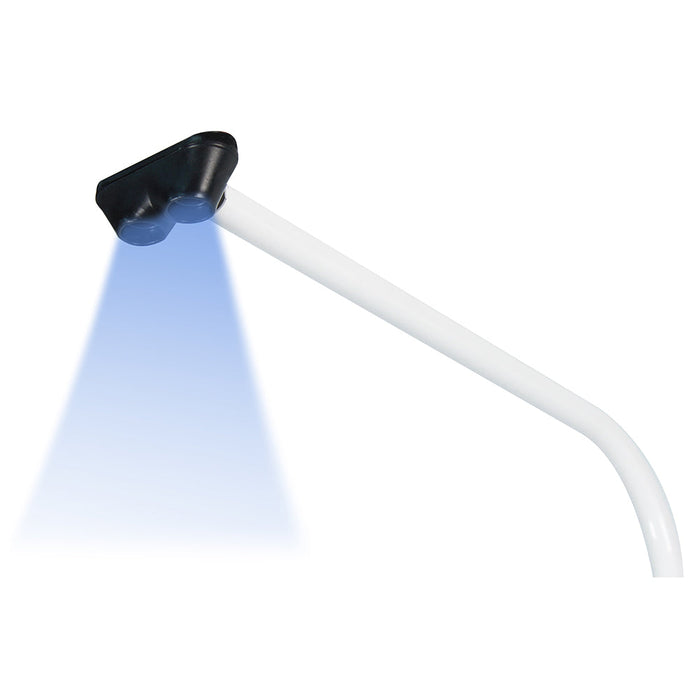

  • Height Rod: Sonar Touchless Height Rod
  • Height Rod Measures: 24" (2') - 86" (7'2") x 0.2"

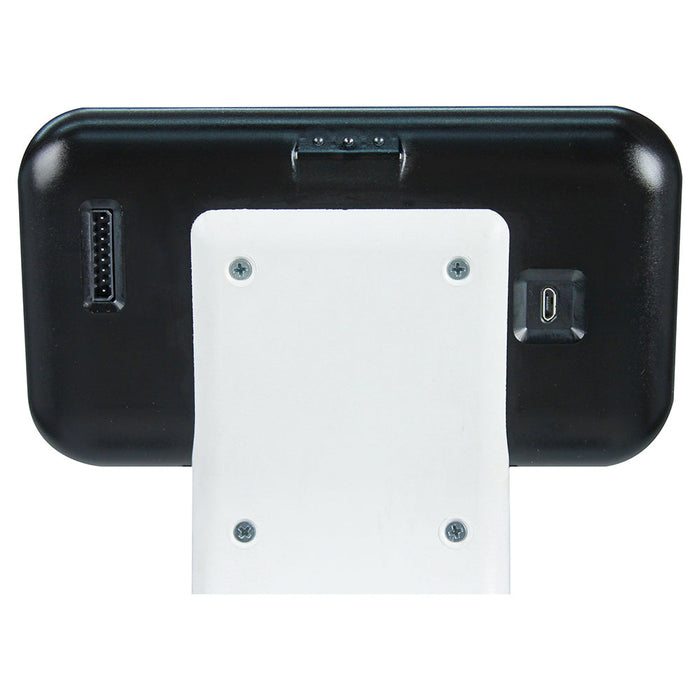

  • Ports: 1 RS232 Serial Port and 1 micro USB-B Port
  • Device Connectivity: HL7 IEEE 11073 Compliant (standard)
  • Net Weight: 32 lb / 14 kg
  • Keypad: 6 Buttons (Power, Lock/Release, Zero, BMI, Up Arrow, Down Arrow)

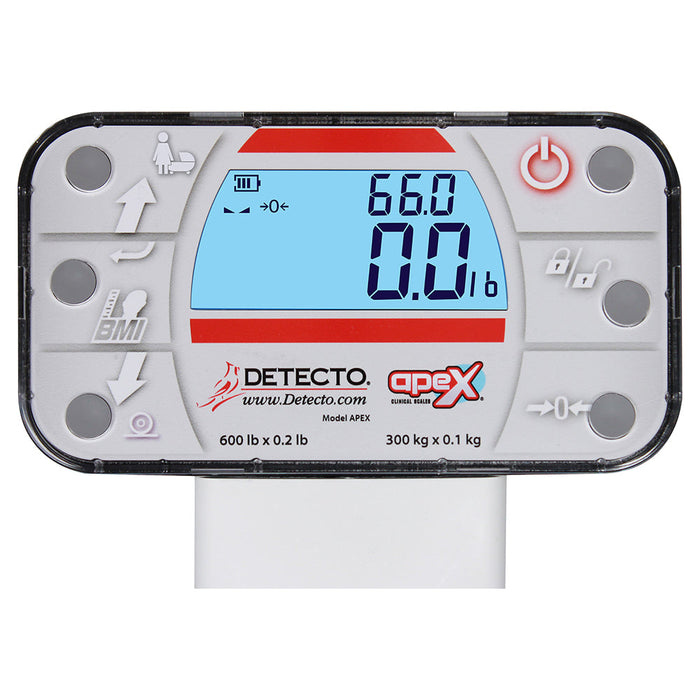

  • Display Type: Dual-Row, Seven-Segment, Clinical-Blue LCD
  • Number of Characters: Weight: 5 Digit, 0.75" (19 mm) High / Height/BMI: 4 Digit, 0.4" (10 mm) High
  • Operating Environment: Operated Temperature Range: 14 to 104 ºF (-10 to +40 ºC) / Humidity: 0 to 90% Non-Condensing
  • Digital Filtering: StableSENSE Adjustable Filtering
  • Construction: Column - Aluminum White Powder Coated; Base - Steel; Indicator Enclosure - ABS

Product Documents

Data Sheet
