Detecto MedVue Digital Weight Indicator for International

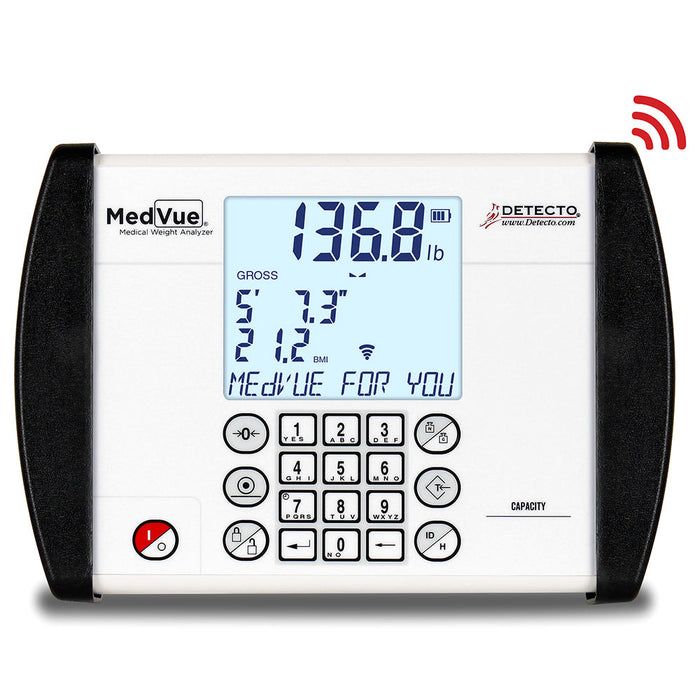

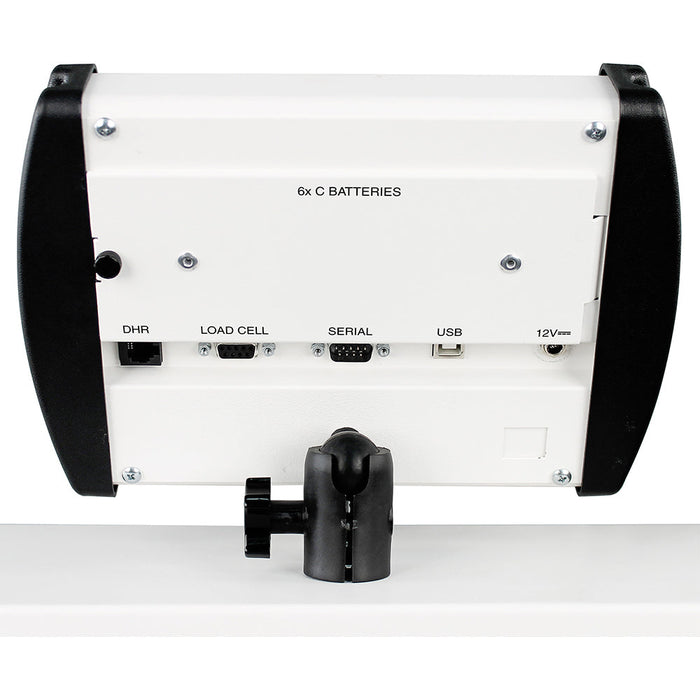

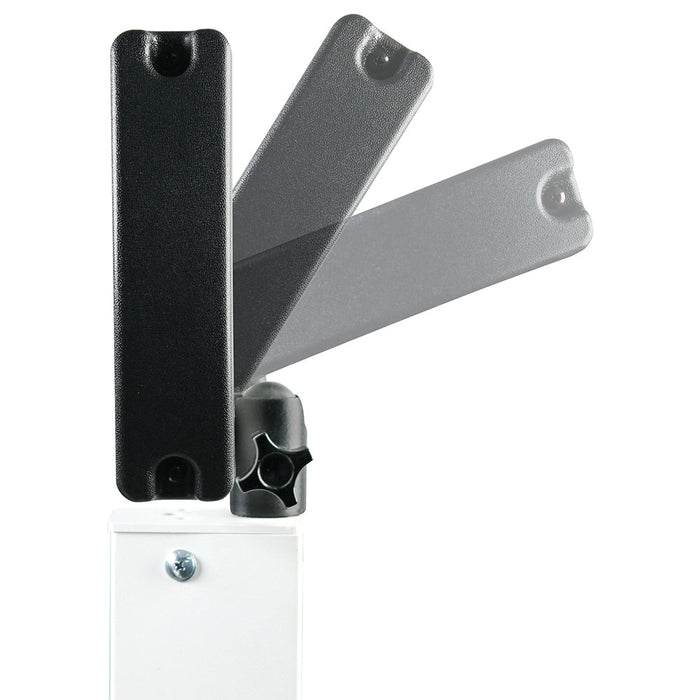

DETECTO's MedVue medical weight analyzer is utilized on select clinical scales, including DETECTO's wheelchair, bariatric, and stretcher scales. The MedVue features a vivid 3.5-in-wide by 3-in-high backlit LCD display screen with nearly 1-in-high weight digit readouts for easy visibility. The MedVue's 350-degree swivel mounting bracket allows the display to be tilted and rotated into position wherever it is the most convenient for the medical professional and/or patient to view. A host of other benefits include units locking into kilograms or pounds, 14-digit patient ID which may be entered via the alphanumeric keypad, 99 stored tare weights, 200 stored transactions, 1LOOK display, and Wi-Fi/Bluetooth models are available with up to 150 ft. wireless range. The MedVue offers a host of both wired and optional wireless connectivity for sending measurement data to multiple devices all at once.

Features

• Wi-Fi/Bluetooth models available
• Weight, Height, and BMI all displayed simultaneously
• 6 C batteries (Not Included)
• BMI calculation
• EMR/EHR ready
• Nearly 1-in-high weight readouts
• Backlit Blue display
• NTEP legal for trade
• RS232 serial and USB ports standard
• Sturdy steel construction

Standard Features

• Units Locking
• Auto Shut-Off
• Selectable Sleep-Mode
• Selectable Filtering
• 99 Tare Storage

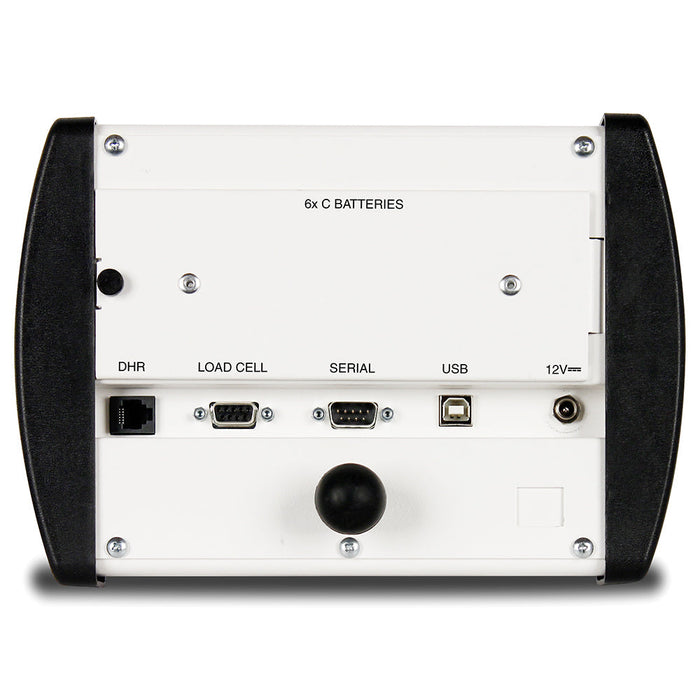

• Serial I/O (Input/Output)
• USB Device Port
• Height Rod Port (for Optional Detecto Digital Height Rod)
• 200 Transactions Stored

Optional Features

• MVIP Ethernet Option
• Detecto DHR (Digital Height Rod)
• MV1PWR, 12VDC AC Power Adapter
• Welch Allyn WACONNECT

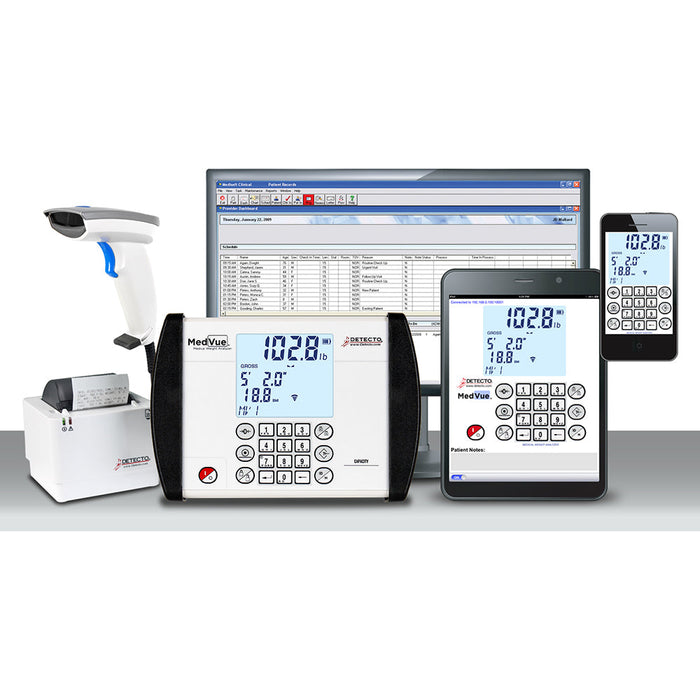

Connect

• Printers
• PCs
• Networks
• Tablets
• Bar Code Scanners
• Even Mobile Phones

Specification

• Brand: Detecto
• Product Type: Digital Weight Indicator
• Location: International
• Battery Life: 7,560 Weighments (with Backlight Fully ON) / 10,620 Weighments (with Backlight Fully OFF)
• Sensitivity: 0.5 u V/Division (0 to 3.0 mV/V), Class III
• Operating Temperature: 14ºF to 104 ºF (-10 to +40 ºC)
• Signal Input Range: 0 to 15mV max.
• Transducer Excitation: 5.0 VDC
• Number of Load Cells: up to 4 each 350 ?
• Load Cell Cable Length: 30 Feet (9 Meters) Max.
• Capacities Weight: 10,000 Divisions Commercial - Height: 0 - 9' 11.9" - BMI: up to 999
• Resolution: 10,000 Divisions
• NTEP: Certificate of Conformance Number 13-011
• Division Value: 1, 2 or 5 x 1, 0.1, 0.01, 0.001
• Sample Rate: 1 to 100 samples per second selectable
• Auto Zero Range: 0.5 or 1 through 9 divisions
• Weighing Units: Pounds (lb), Pounds/Kilograms (lb/kg), Kilograms (kg) and Kilograms/Pounds (kg/lb)
• Keyboard: Membrane Type with 19 Keys
• Enclosure Size: 9.8" (W) x 6.8" (H) x 1.8" (D)
• Construction: Painted Steel

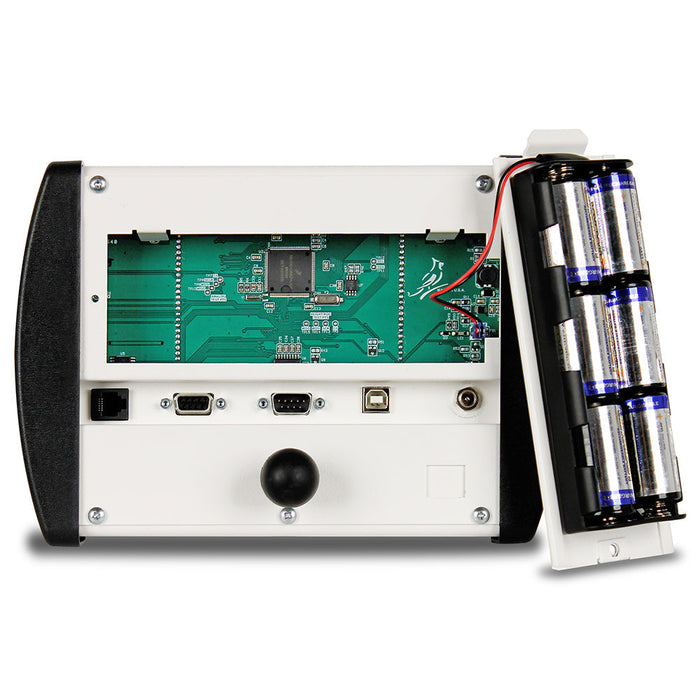

• Power Requirements: 6 “C” cell Ni-Cad or NiMH Batteries (not included) OR an Optional 110-240 VAC 50/60 Hz 12 VDC 1.25A Wall Plug-in AC Power Adapter (DETECTO part Number MV2PWR)
• Wi-Fi/Bluetooth Connectivity: Available on models MV1C (North America) and MV2C (International). Up to 150 ft. wireless range (depending on environmental factors).
• Units Locking: Established upon initiliazation and user selects either LB or KG
• Overall LCD Display Size: 3.5" (W) x 3" (H) Backlit Blue LCD
• Weight Display: 5 Digit, Seven Segment, 0.875"
• Height Display: 4 Digit, Seven Segment, 0.5" High LCD
• Body Mass Index Display: 3 Digit, Seven Segment, 0.5" High LCD
• ID Display: 14 Digit, 14 Segment, 0.35" High LCD
• LCD Viewing Range: Up to 30 Feet / 10 Meters for Weight Digits

Product Documents

Data Sheet
