Detecto Digital Portable Stretcher Scale

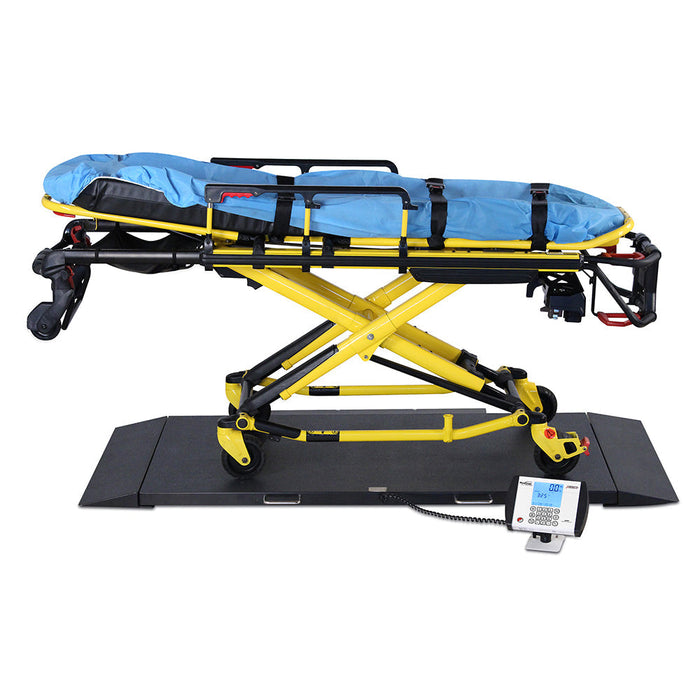

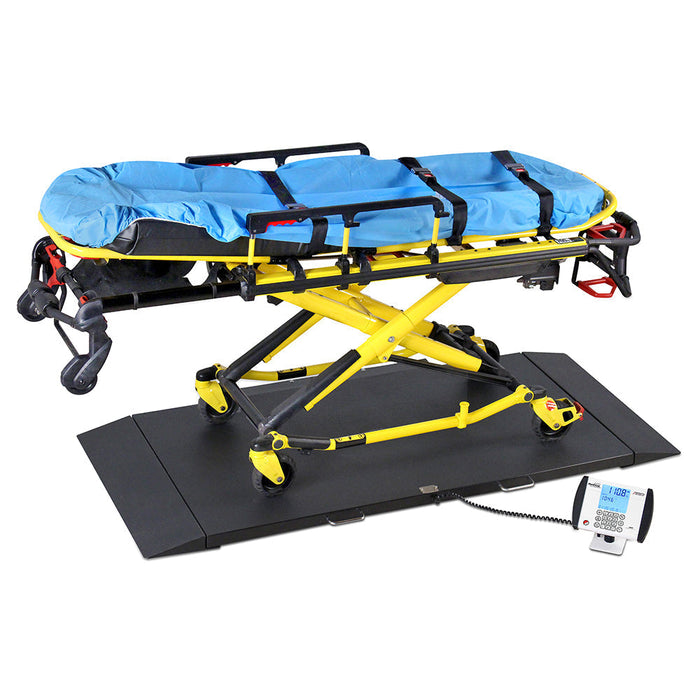

DETECTO's Stretcher Scale is ideal for emergency arrivals into a hospital when time is of the essence for gathering patient weights. The DETECTO model 8500 can be used in the ER, dialysis, long-term care, and nursing homes.

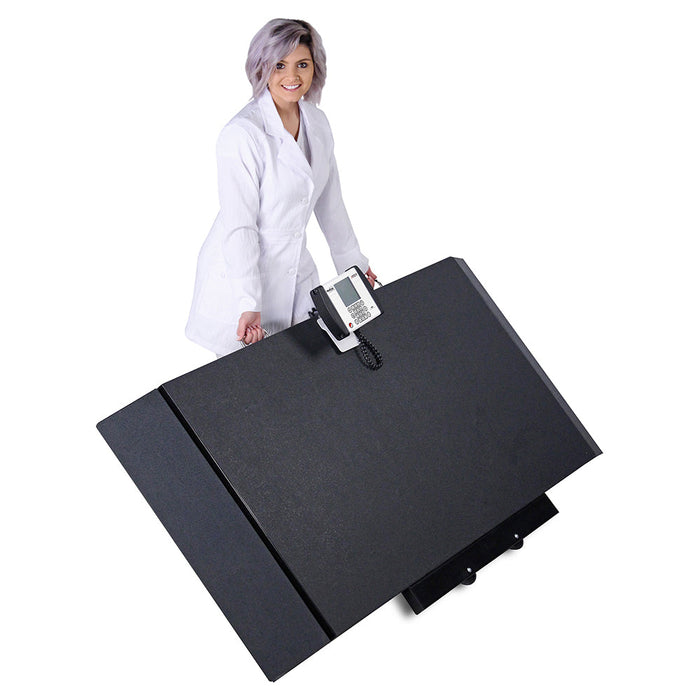

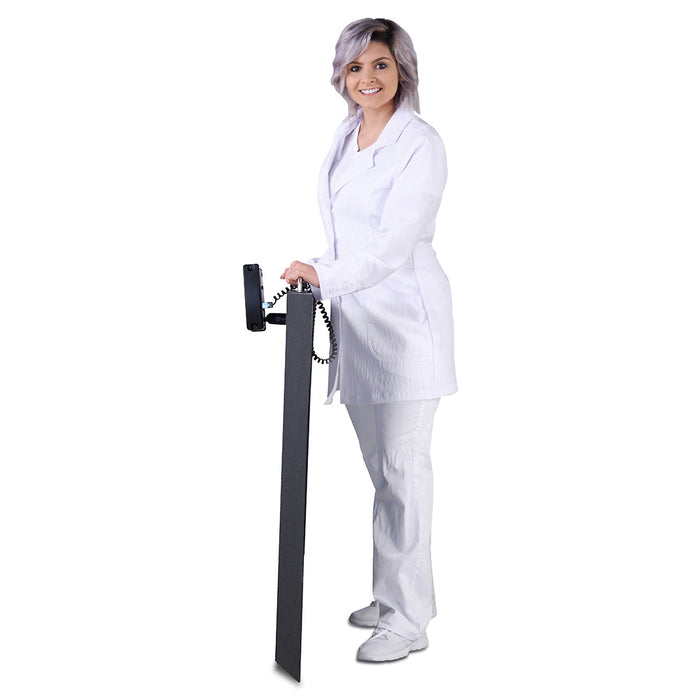

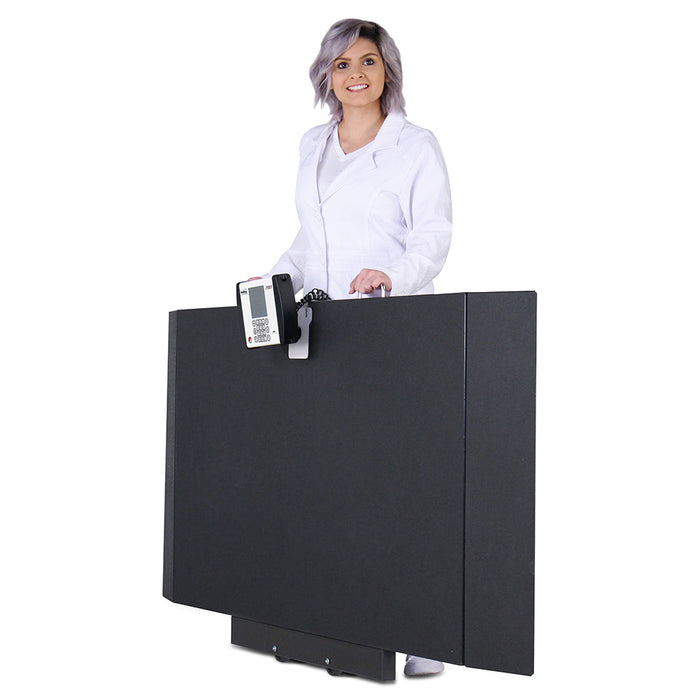

DETECTO's Stretcher Scale is engineered and manufactured at a light enough weight that it is easily portable to lift up and roll by nursing professionals. The model 8500 is 115 lb/52 kg net weight and the slim profile scale design fits easily through doorways of nearly any size. The scale's relatively low net weight, wheels, and guide handles all combine to make it easy to maneuver.

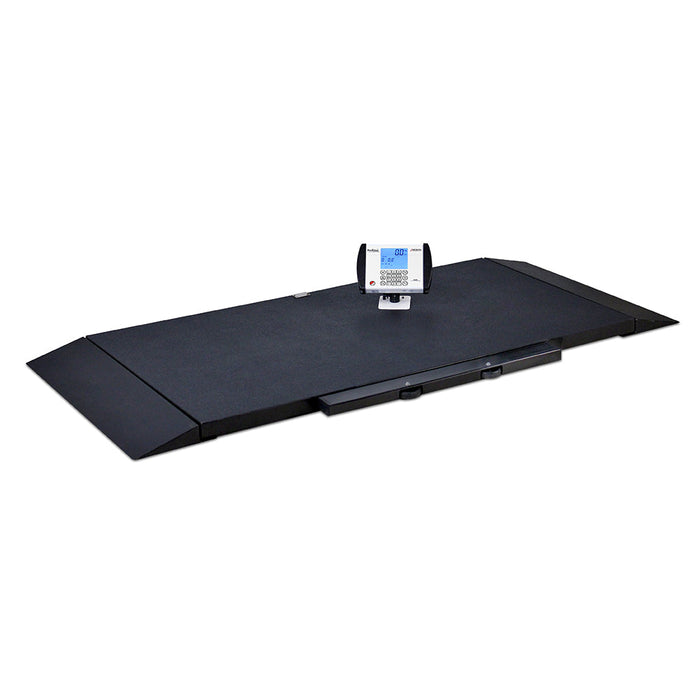

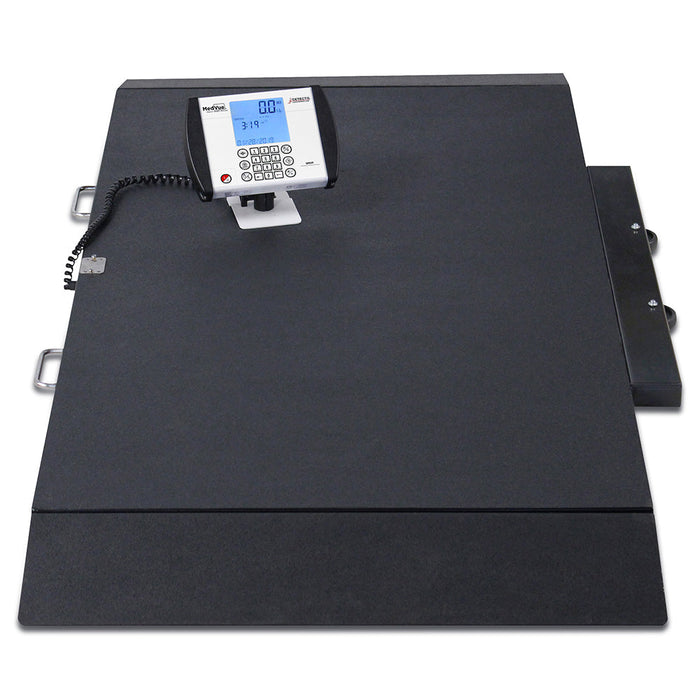

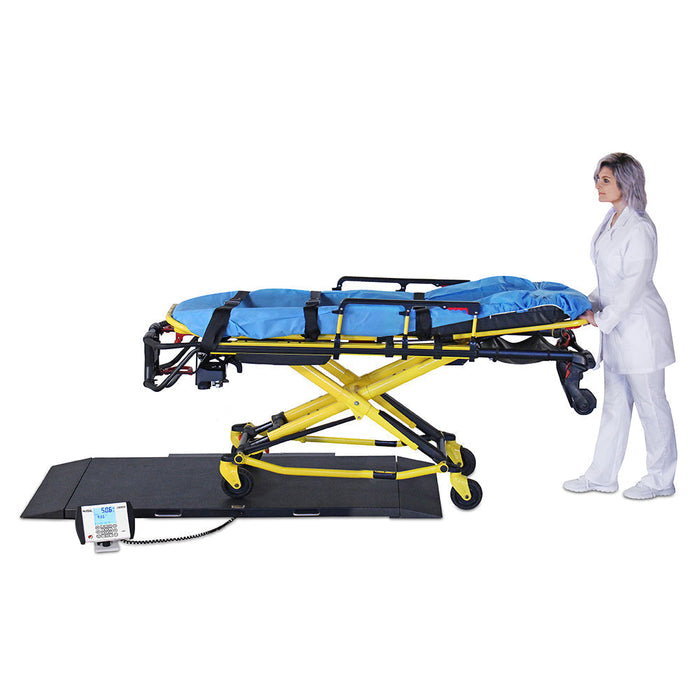

DETECTO's Stretcher Scale has a 2-inch-high, low-profile platform with textured mat surface. The two-way-access ramps rest on the floor making it easy to roll patients onto the scale platform. The single-pass weighing feature saves time by allowing you to enter the stretcher or wheelchair tare weight using the numeric keypad on the indicator. You may also use the convenient pushbutton tare feature to remove the stretcher or wheelchair weight if you don't know the weight already.

Features

• Spacious platform accommodates all common stretcher types
• Units locking into Kilograms or Pounds
• Wi-Fi / Bluetooth models available for wireless EMR/EHR connectivity
• Models available with AC adapter included
• Available with or without column for weight indicator (model 8500 without column; model 8550 with column)
• High-capacity digital scale for stretchers and wheelchairs
• Two integral wheels and guide handles for mobility
• 1,000 lb x 0.2 lb / 450 kg x 0.1 kg capacity
• Spacious 60 in W x 32.5 in D / 1,524 mm W x 826 mm D platform size

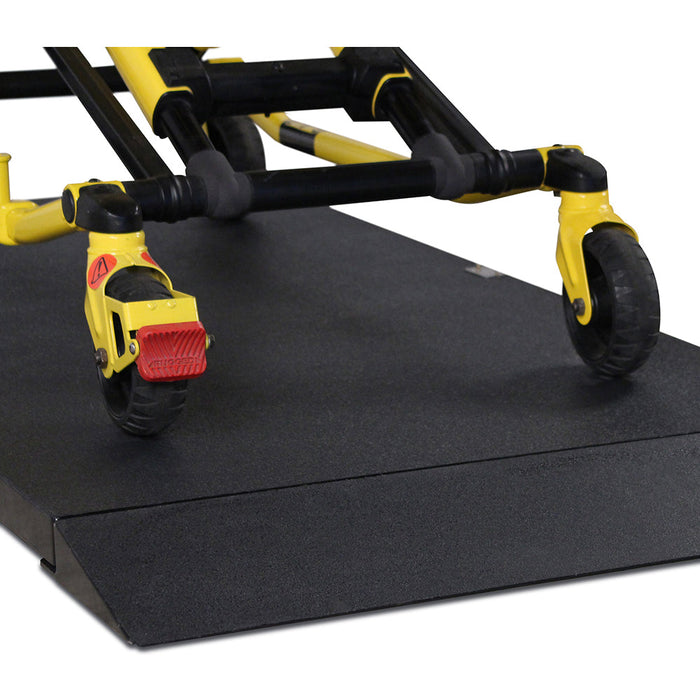

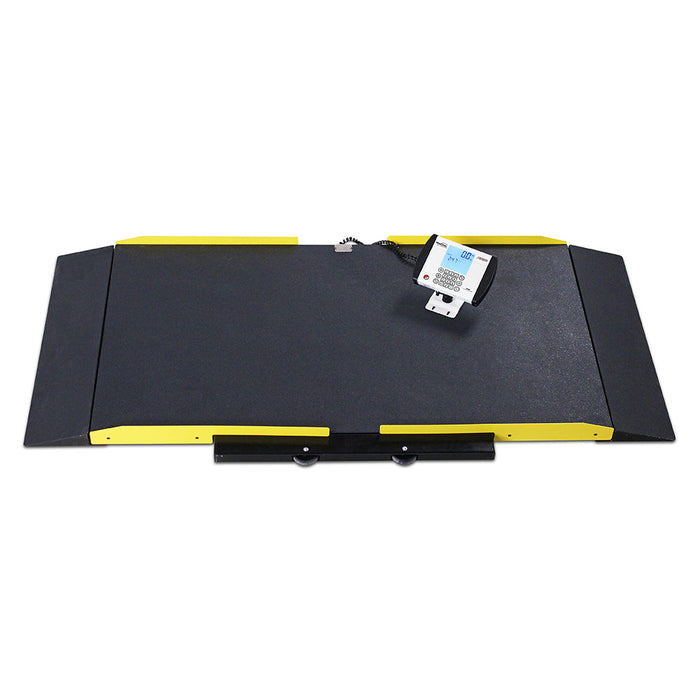

• Two integrated ramps included for easy access
• Steel construction for optimal durability
• Hold/Release key to hold weight after leaving the scale for better patient care
• Mobile for use in multiple clinical departments

Specification

• Brand: Detecto
• Product Type: Stretcher Scale
• Width: 76"
• Depth: 38"
• Height: 2"
• Capacity: 1,000 lb x 0.2 lb / 450 kg x 0.1 kg

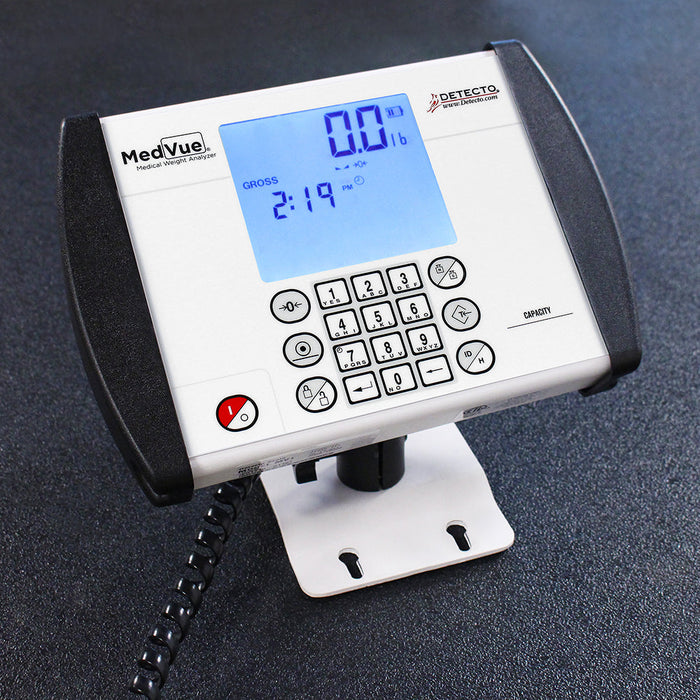

• LCD Display Dimensions: 3.5" W x 3" H / 89 mm W x 76 mm H Backlit Blue LCD
• Display: 5 Digit, 7 Segment, 7/8" (22 mm) High LCD Weight Digits
• Resolution: 5,000 Divisions, max
• Keypad: 19 Key, Color-Coded, Sealed Membrane
• Functions: Tare, Net/Gross, Hold/Release, Zero, Metric Conversion, ID Storage, Height Entry for Body Mass Index Calculation, and Printer Output
• Power: Optional Model MV1PWR AC Adapter or 6 C Batteries (not included). Models are Offered with AC Adapter by Adding -AC Suffix to Model Number
• Battery Life: 7,560 Weighments (with backlight fully ON) 10,620 Weighments (with backlight fully OFF)
• Connectivity: RS232 serial, USB Standard. Models are Available with Wi-Fi/Bluetooth for wireless EMR/EHR Connectivity
• Cable Length: 6 ft / 1.8 m Coiled Cable, 14 ft / 4.2 m Fully Extended (from scale to indicator)
• Mounting Bracket: 350-degree Indicator Swivel Mounting Bracket Included
• Operating Temperature: 14 to 104 ºF / -10 to +40 ºC
• Construction: Mild Steel
• Included: Two Ramps (assembly required)
• MedVue Indicator: 9.8" W x 8.3" D x 7.8" H
• Platform Dimensions: 60" W x 32.5" D x 2" H
• Ramp Dimensions: 7.5" W x 32.5" D x 2" H

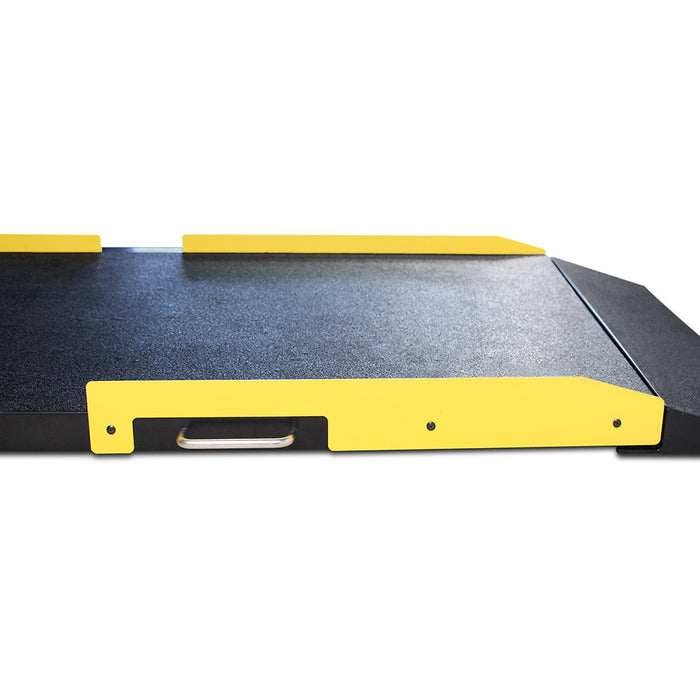

• Optional Guide Rail Dimensions: 24" W x .1" D x 3.3" H / 610 mm W x 3 mm D x 83 mm H (2 short rails per scale) and 27" W x .1" D x 3.3" H / 686 mm W x 3 mm D x 83 mm H (2 long rails per scale)
• Net Weight: 115 lb / 52 kg (including indicator and mounting bracket)
