Detecto 3' x 3' Floor Scale with Ramp and MV1 Indicator - Black, 1,000 lb x 0.2 lb

by Detecto
Save $2,053.00 Save $1,976.00
Original price $6,585.00
Original price $6,585.00 - Original price $6,846.00
Original price $6,585.00
Current price $4,609.00
$4,609.00 - $4,793.00
Current price $4,609.00

This product does not qualify for free shipping. Shipping will be calculated at checkout.

Detecto 3' x 3' Floor Scale with Ramp and MV1 Indicator - Black, 1,000 lb x 0.2 lb

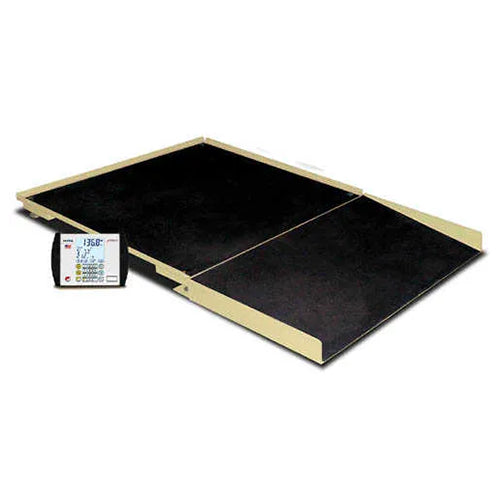

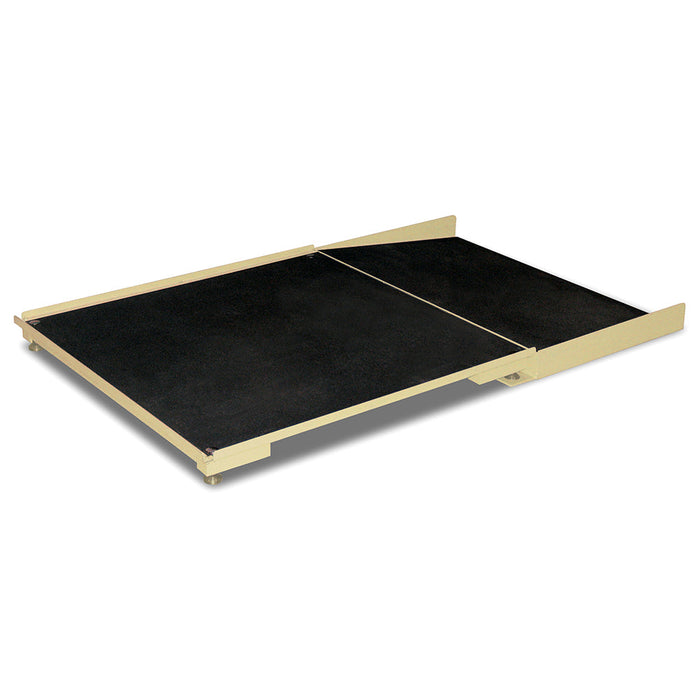

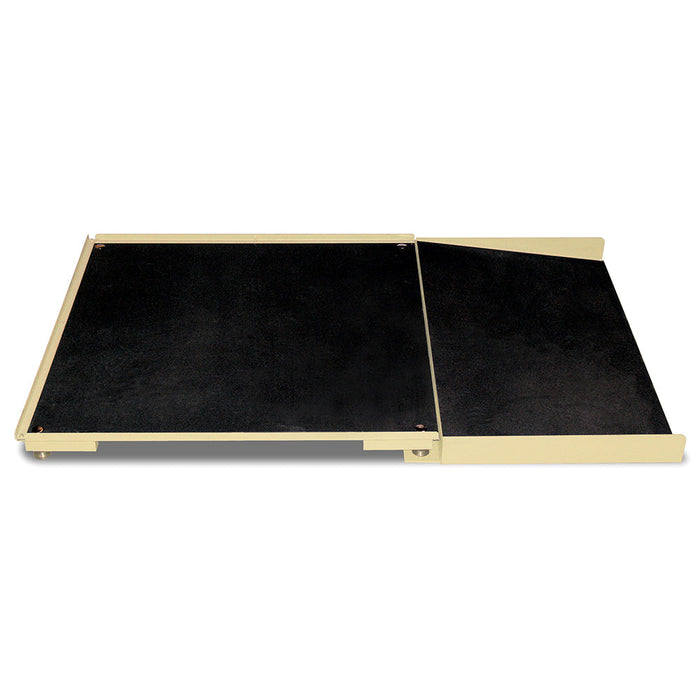

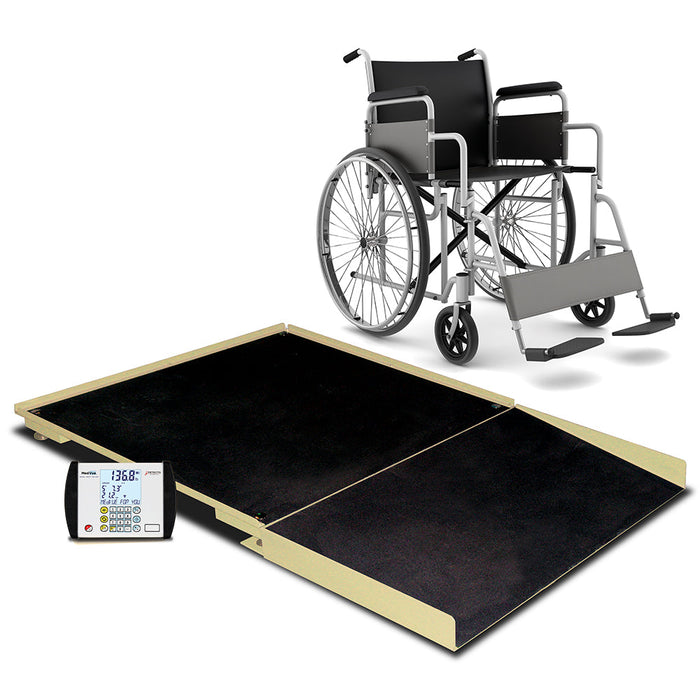

DETECTO's FHD series low-profile wheelchair scale models offer two platform sizes to accommodate wheelchairs of varying widths. Ranging from 36 wide platforms, patients in regular size to bariatric size wheelchairs are provided easy access. The 28.5-in-long ramp provides a smooth transition from the floor to the scale platform.

The durable scale provides a capacity of 1,000 lb/450 kg, allowing for measuring patients of almost any weight. The platform and ramp is covered with a black rubber mat designed to prevent slippage and ensuring safe weighing for non-ambulatory or standing patients.

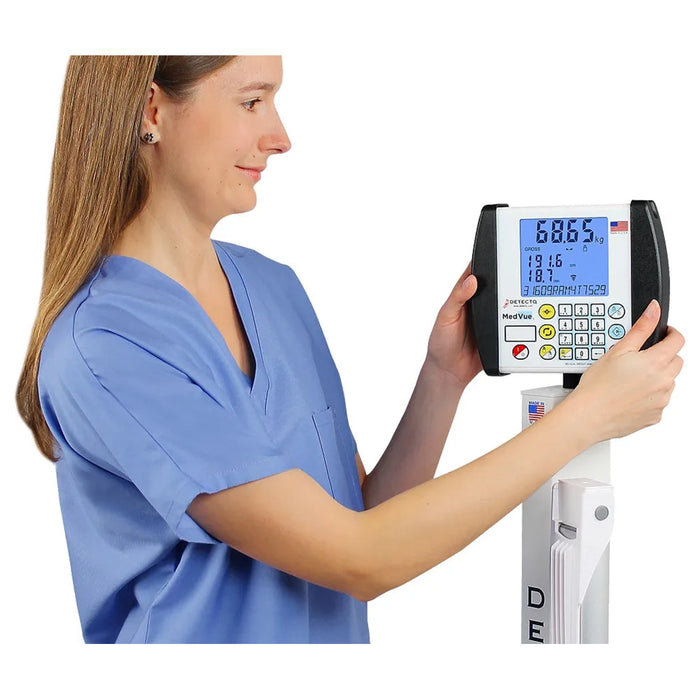

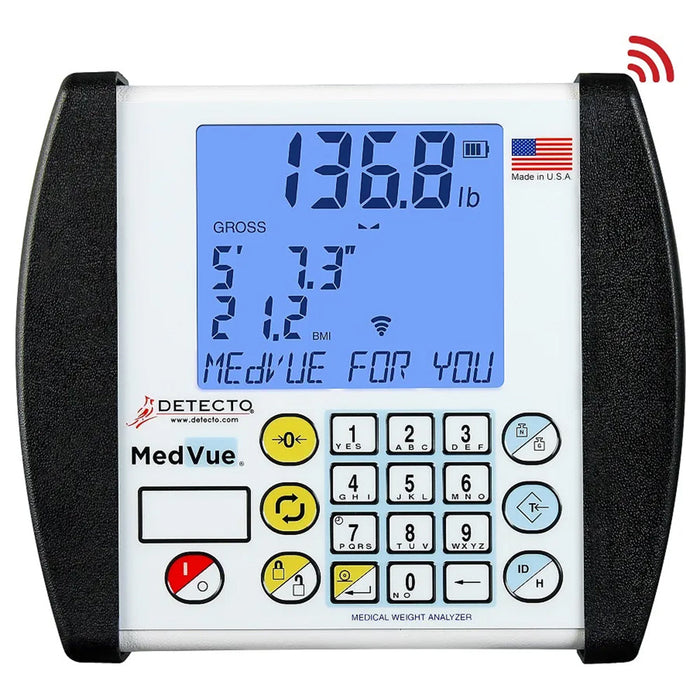

DETECTO's versatile MedVue weight indicator provides many benefits and options for medical professionals. This indicator offers you tare functionality and storage for wheelchair weights, measurement units switching (including metric lockout), BMI calculation, EMR/EHR readiness, and stores up to 200 transactions. Valuable options include Ethernet, WiFi, and Welch Allyn interface capabilities, permitting EMR/EHR information transmission to many important software platforms.


  • 28.5" Access ramp
  • 6 C batteries (Not Included)
  • Indicator is EMR/EHR software ready
  • Platform features slip-resistant rubber mat surface
  • Low-profile ramp included allows for easy access
  • Metric lockout available
  • Output to printer or PC
  • Wi-Fi and ethernet optional


  • Brand: Detecto
  • Product Type: Floor Scale
  • Capacity: 1,000 lb x 0.2 lb
  • Platform Size: 36" x 36"
  • Ramp Length: 28.5"
  • Indicator Width: 9.8"
  • Indicator Height: 6.8"
  • Indicator Depth: 1.8"
  • Indicator Cable Length: 15 ft
  • Net Weight: 225 lb
  • Display: 5 Digit, Seven Segment, 7/8" High LCD Weight Digits
  • Keyboard: 19 Key, Color-Coded, Sealed Membrane
  • Power: Optional Model MV1PWR AC Adapter or 6 C Batteries
  • Indicator: MedVue Model MV1

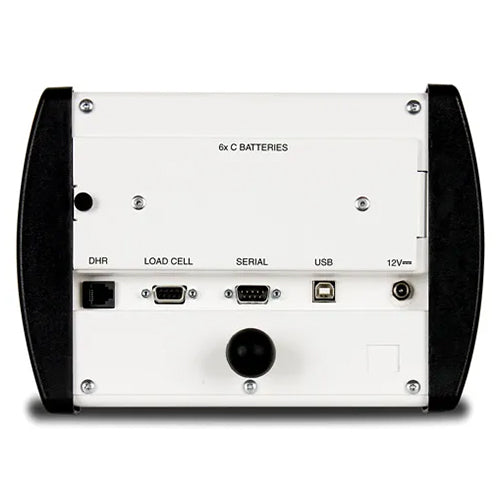

  • Connectivity: RS232 Serial, USB and Optional Wired and Wi-Fi Ethernet

Product Documents

Data Sheet
