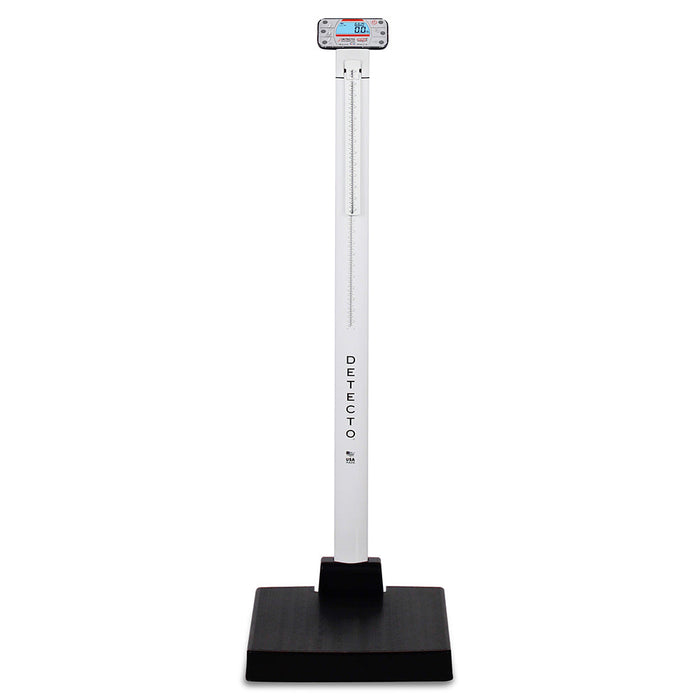

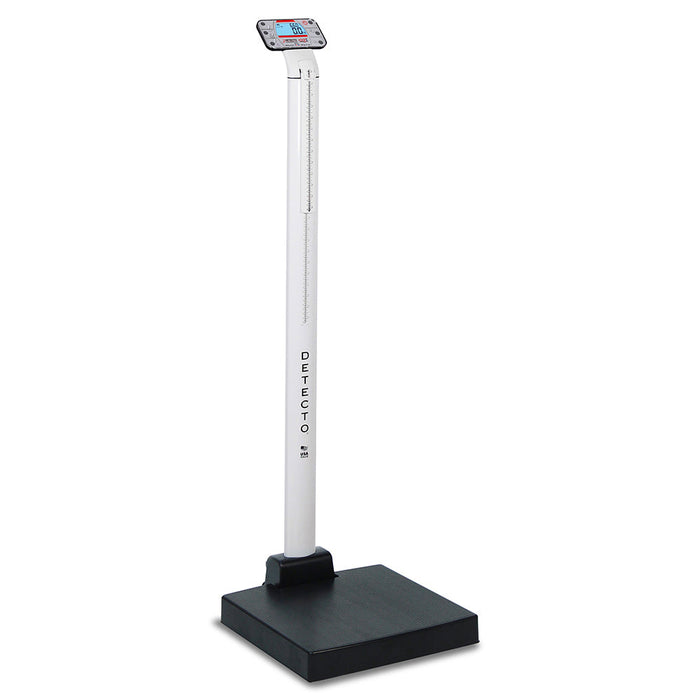

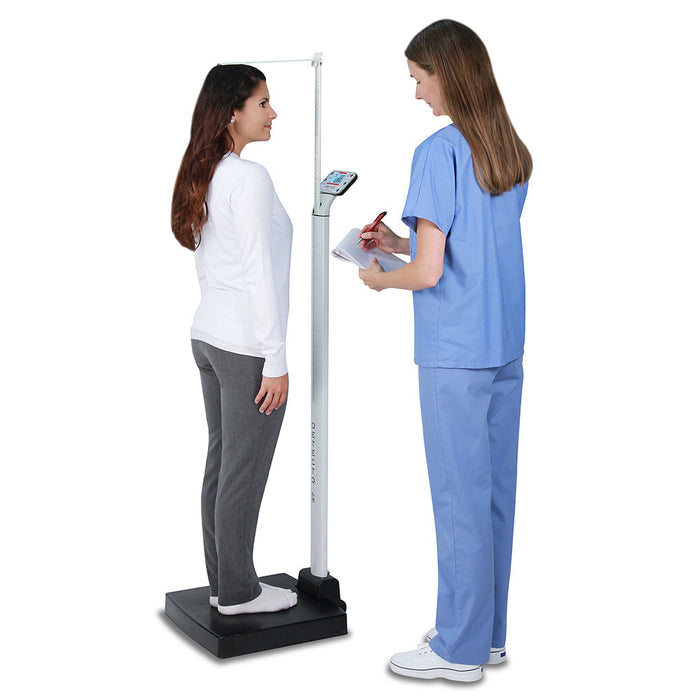

Detecto APEX Physician Scale With Mechanical Height Rod

DETECTO's apex eye-level digital physician scales feature inline mechanical height rods and an extra-wide. The apex scale features 600 lb x 0.2 lb / 300 kg x 0.1 kg capacity, AC or battery power (AC adapter included on some models), sturdy column construction and integral bubble level.

Features

• 0.75-Inch-High LCD Weight Readouts
• Units Locking into Pounds or Kilograms
• Wi-Fi / Bluetooth Models Available for Wireless EMR/EHR
• Mother / Baby Function Factors the Weight of Infants and Toddlers Held by an Adult
• 10 Different apex Models Available

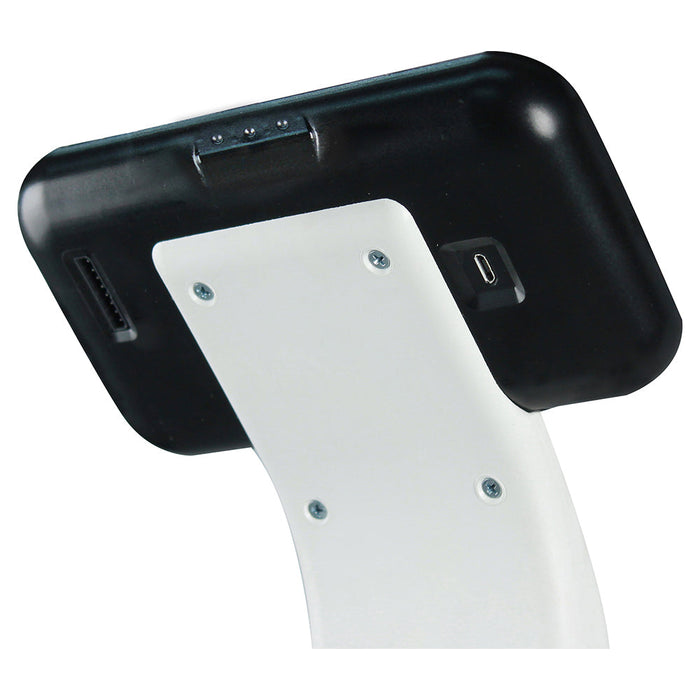

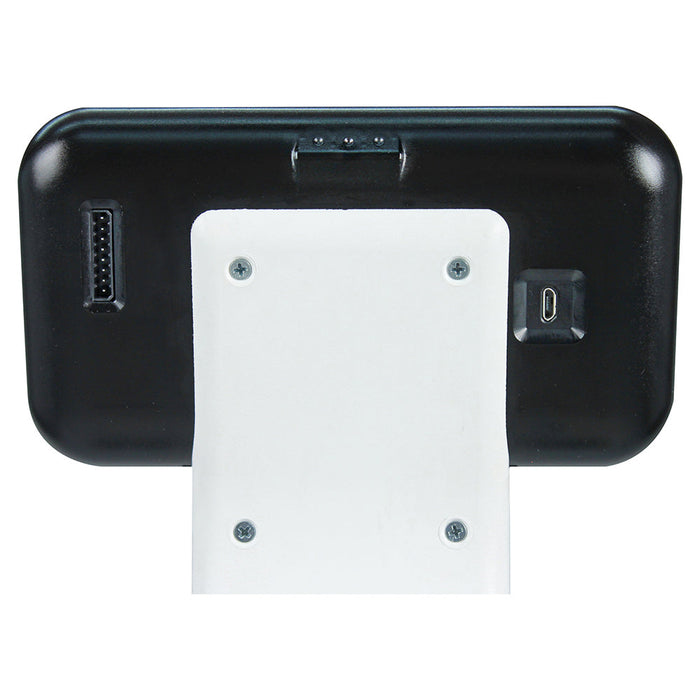

• 1 RS232 Serial Port and 1 Micro USB-B Port
• 6 Easy-to-Use Buttons
• BMI Calculation

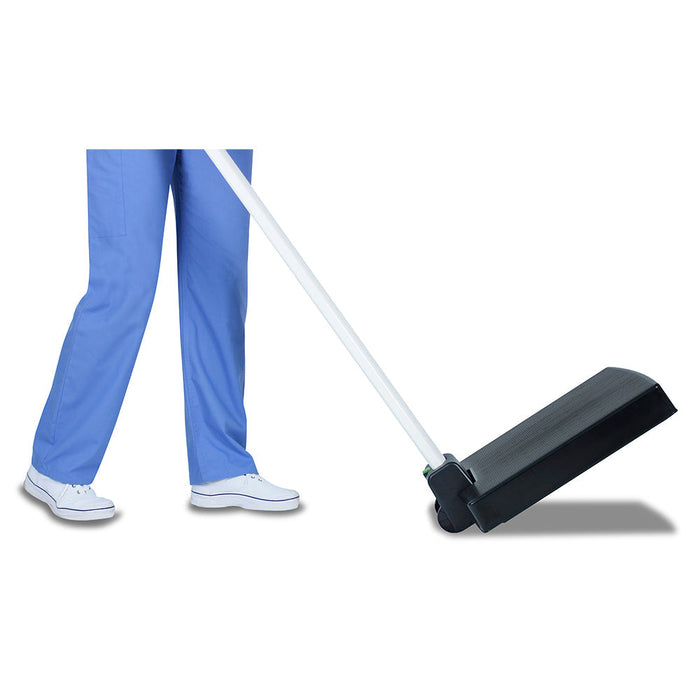

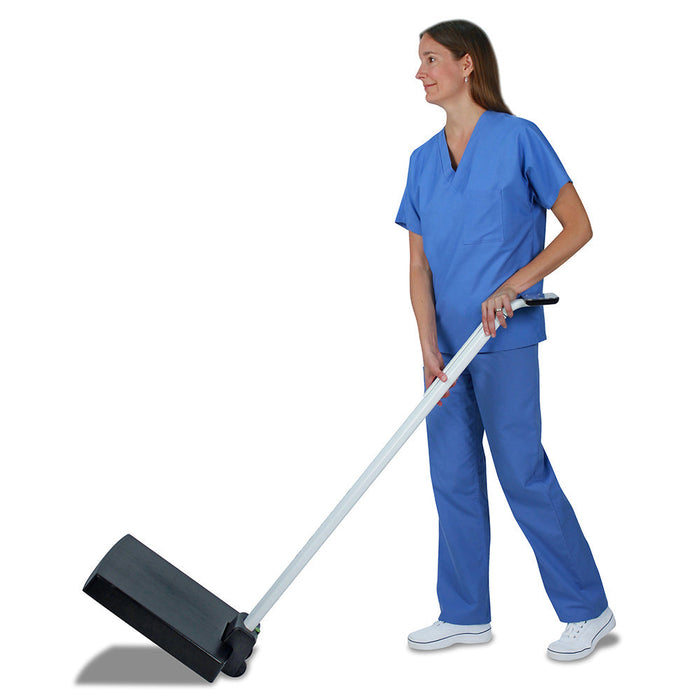

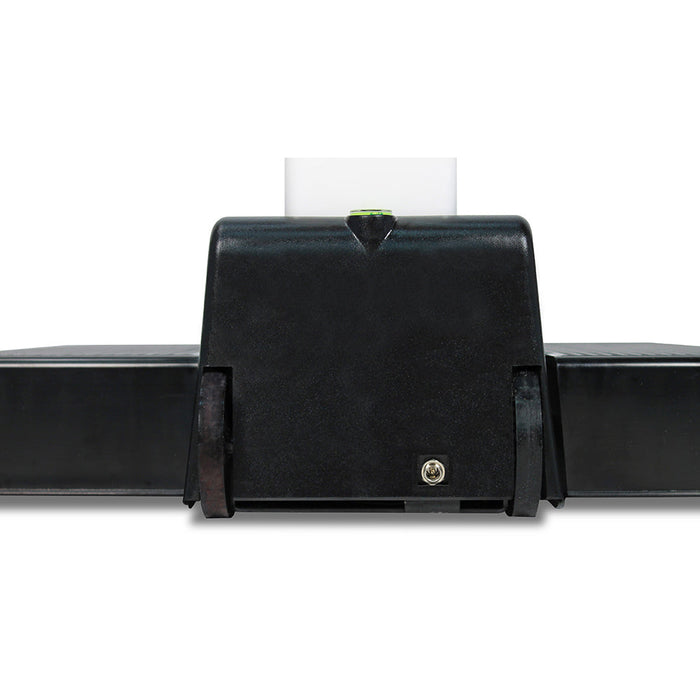

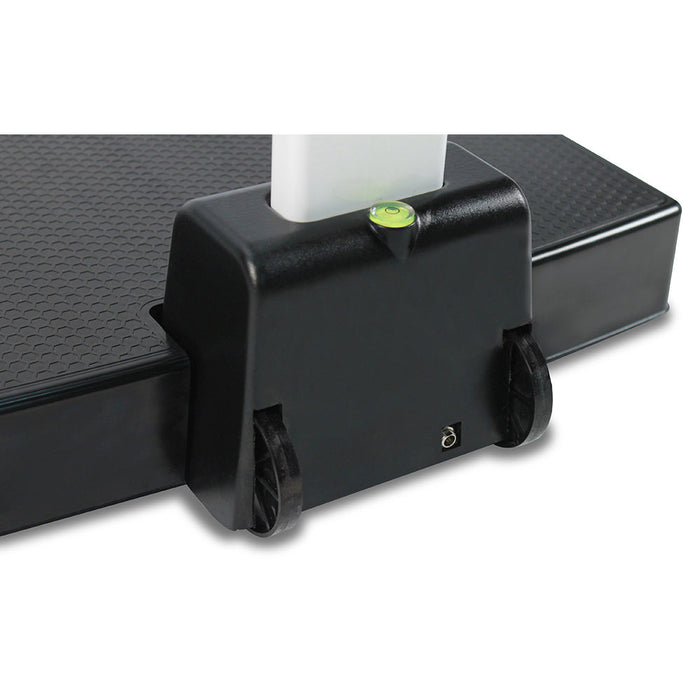

• Dual Integral Wheels

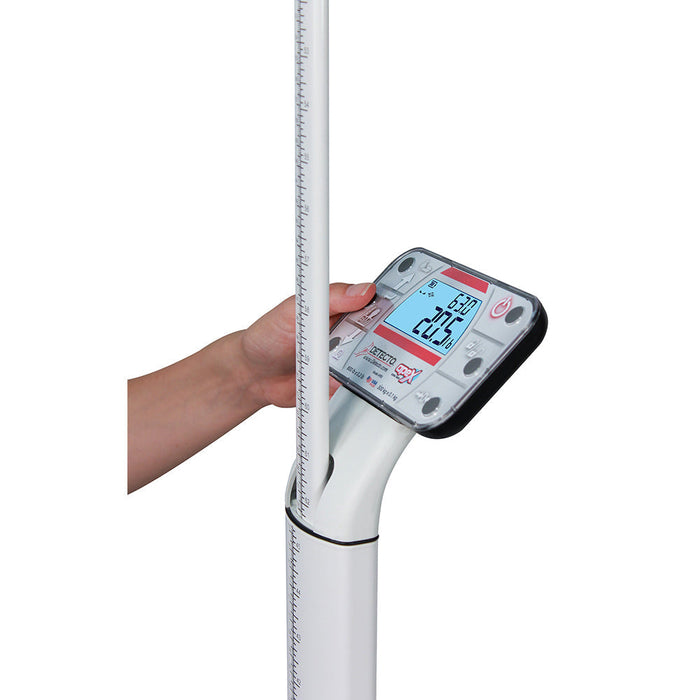

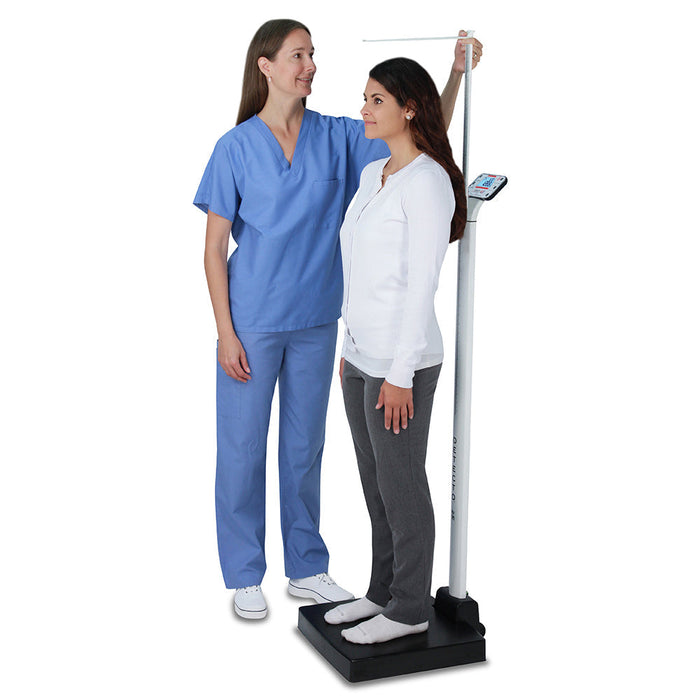

• Inline Mechanical Height Rod
• Platform Size: 17 in W x 17 in D x 2.75 in H
• Welch Allyn Connectivity Available for Electronic Medical Records

Specification

• Brand: Detecto
• Product Type: APEX Digital Clinical Scale
• Width: 17"
• Depth: 19.5"
• Height: 53.3"
• Capacity: 600 lb x 0.2 lb / 300 kg x 0.1 kg (lb or kg selected upon initialization at start-up)
• Construction: Column - Aluminum White Powder Coated; Base - Steel; Indicator Enclosure - ABS
• Platform Size: 17" W x 17" D x 2.75" H
• Weighing/Height Units: Pounds/Inch (lb, in) or Kilograms/Centimeters (kg, cm)

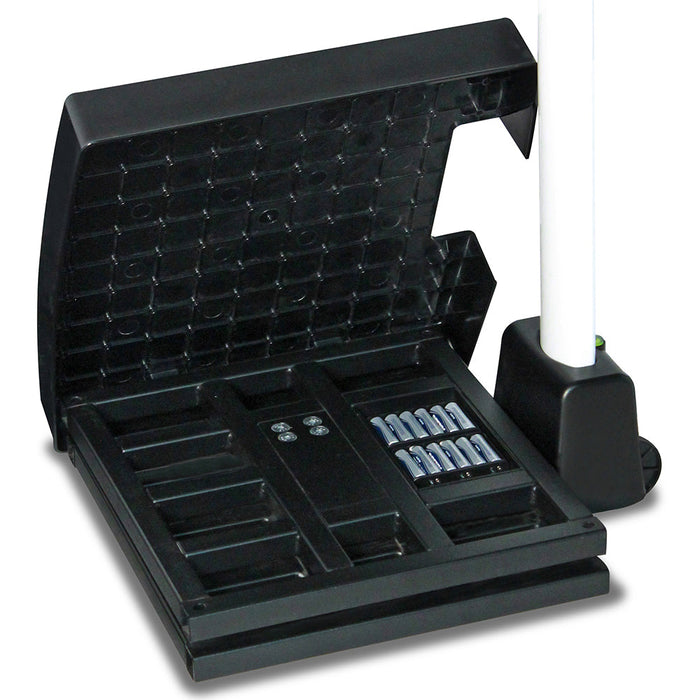

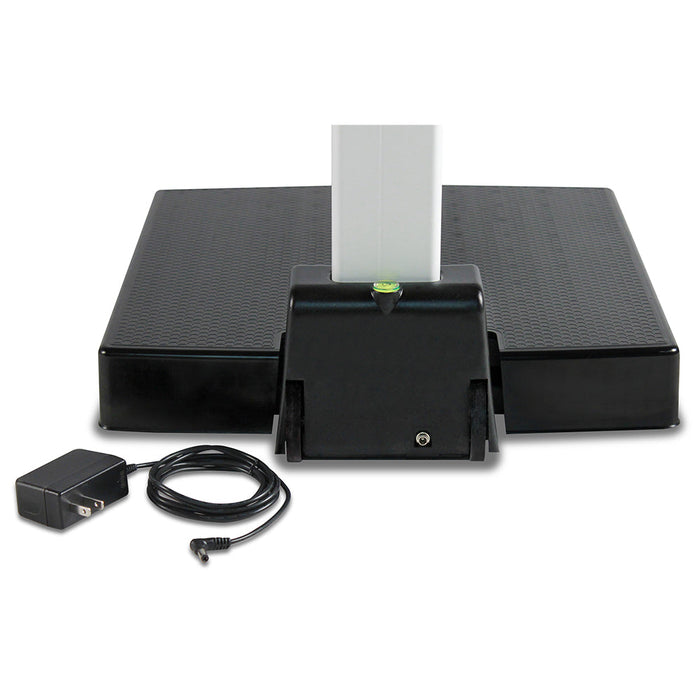

• Power: 12 AA Batteries (not included) or AC Adapter (included with some models)

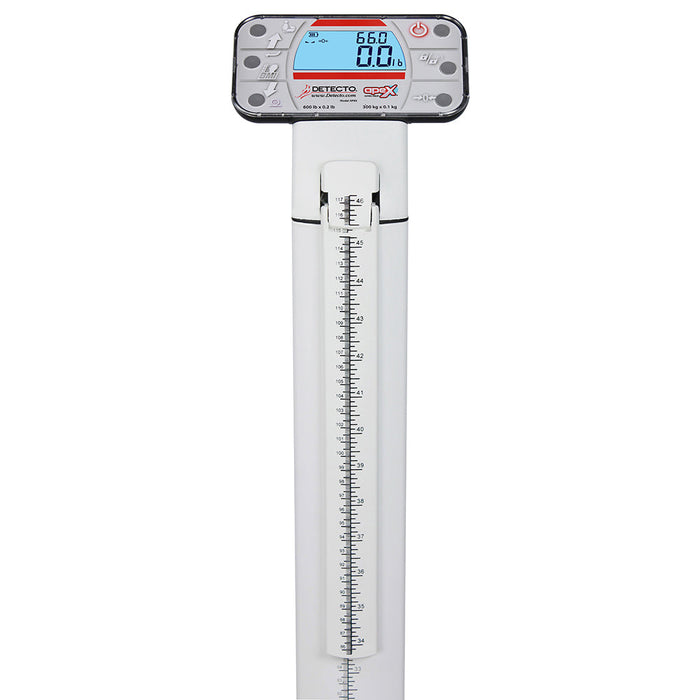

• Height Rod: Mechanical Inline Height Rod
• Height Rod Measures: 24" (2') - 86" (7'2") x 0.125" / 60 cm - 218 cm x 0.1 cm
• Device Connectivity: HL7 IEEE 11073 compliant (standard)
• Net Weight: 31 lb / 14 kg
• Keypad: 6 Buttons (Power, Lock/Release, Zero, BMI, Up Arrow, Down Arrow)

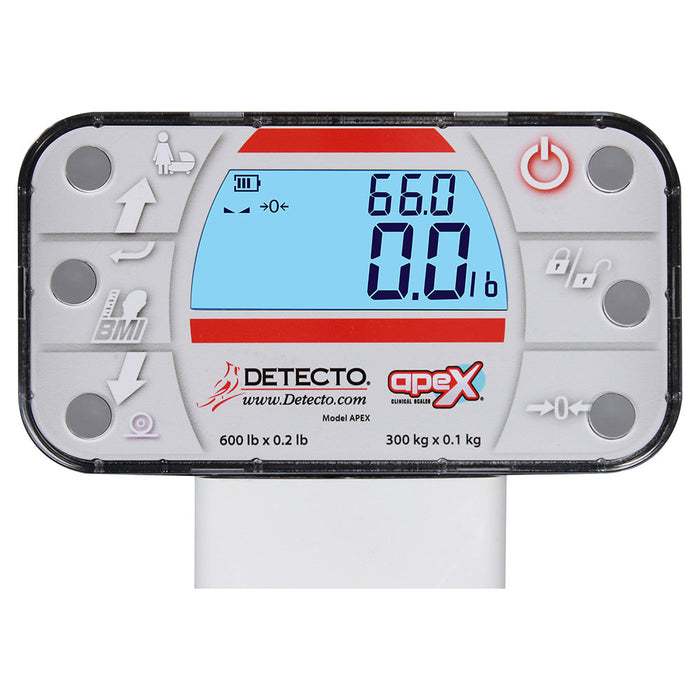

• Display Type: Dual-Row, Seven-Segment, Clinical-Blue LCD
• Number of Characters: Weight: 5 Digit, 0.75" (19 mm) High / Height/BMI: 4 digit, 0.4" (10 mm) High
• Operating Environment: Operated Temperature Range: 14 to 104 ºF (-10 to +40 ºC) / Humidity: 0 to 90% Non-Condensing
• Digital Filtering: StableSENSE Adjustable Filtering
