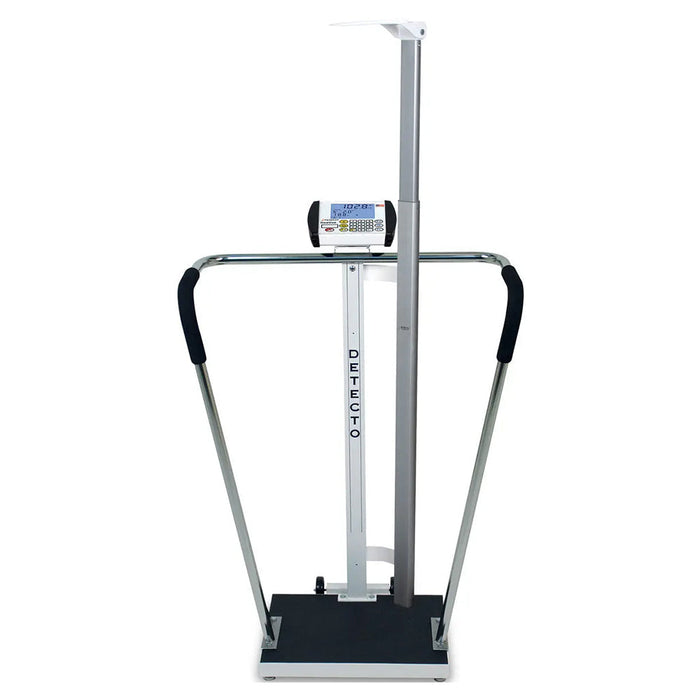

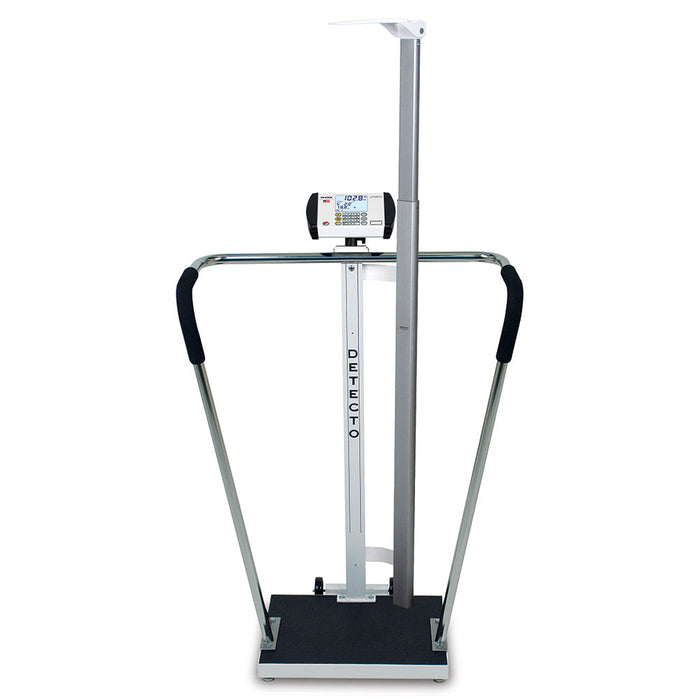

Detecto Digital Platform Height Rod Bariatric Scale

Detecto's 6854DHR is engineered for weighing obese and unsteady patients and features a low-profile platform and stainless steel handrails with padded grips for patient assurance. Utilizes the Detecto 1LOOK feature for optimum performance, displaying height, weight, and BMI simultaneously by simply raising the digital height rod while a patient is being weighed. There are no keys to push and no operational sequences.

Features

• 6 C Batteries (Not Included)
• 600 lb / 270 kg capacity
• BMI calculation
• Digital height rod
• EMR/EHR ready
• Integral wheels ease transport
• OIML EC class III model available
• Wi-Fi and ethernet optional

Specification

• Brand: Detecto
• Product Type: Height Rod Bariatric Scale
• 6854DHR Capacity: 600 lb x 0.2 lb / 270 kg x 0.1 kg
• Platform Size: 18 x 14" / 46 x 36 cm
• Digital Height Rod: 43 to 79 in (110 to 200 cm)
• Power: Optional Model MV1PWR AC Adapter or 6 C Batteries (not included)
• Display: 5 Digit, Seven Segment, 7/8" (22.23 mm) High LCD Weight Digits
• Connectivity: RS232 Serial, USB and Optional Wired and Wi-Fi Ethernet
• Keyboard: 19 key, color-coded, Sealed Membrane
• Digital Height Rod Requirements: 0.1" / 0.1 cm Graduations

Product Documents

Data Sheet
